1500-WT Series
Sku: BIR-1500-WT Series

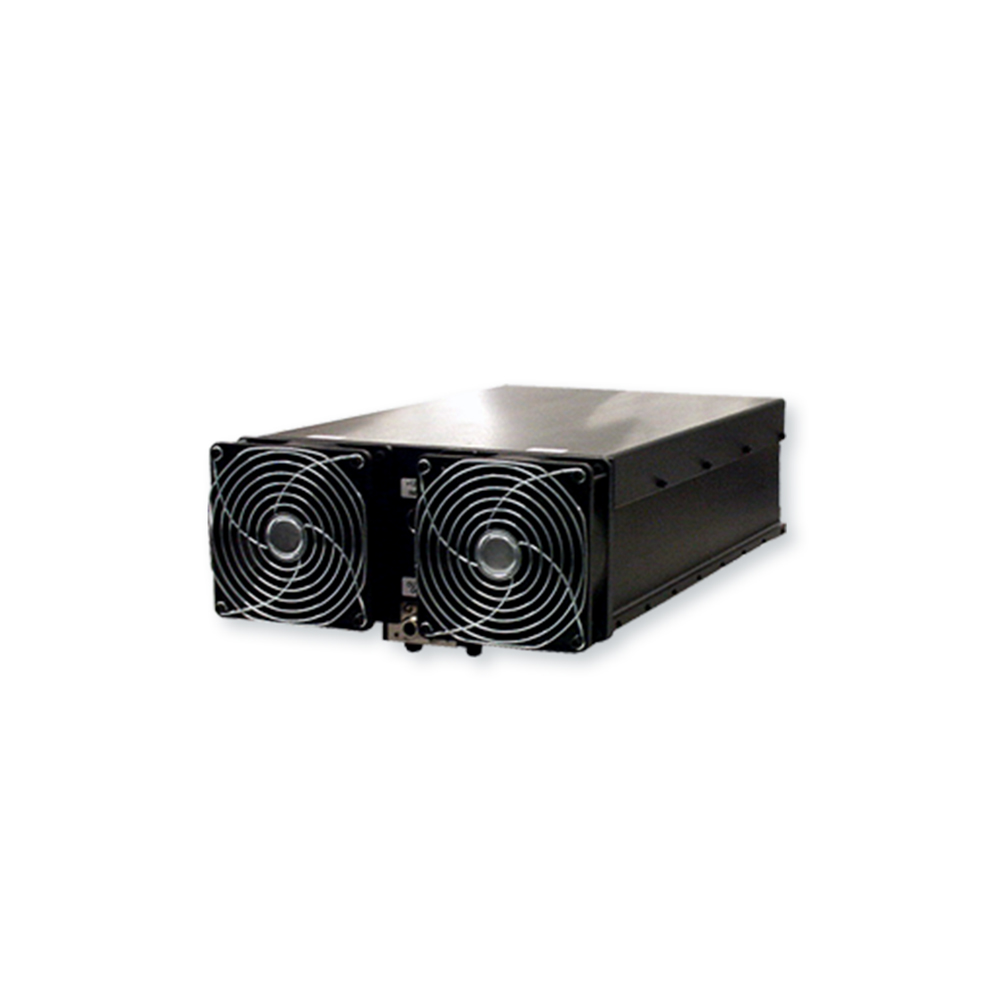

1500-WT Series, 1500 Watt, Convection-Cooled Dry RF Terminations
Product Information
1500-WT Series, RF Terminations are world renowned for their high-quality, robust construction and conservative power ratings. The use of non-magnetic materials and plating provide safety when used in high magnetic fields such as MRI.
- Convection-Cooled
- Cooling fan accepts 90 through 264 volts AC at a 47 to 63 Hz line rate
- Ultra-Compact size, tapped mounting holes for fixed installations
- Rugged Reliability provides years of trouble free use
product specifications:
Item No
1500-WT Series
Item Name
1.5 kW, Convection-Cooled Dry Terminations
Power Rating
1500 W avg. / 4kW Peak
Frequency Range
DC – 2.4 GHz
VSWR
DC – 1 GHz 2 @ 1.10:1 max.
1 -2.4 GHz @ 1.25:1 max.
Impedance Ω
50
Product Type
Dry (Convection-Cooled)
Operating Position
Horizontal
Connectors
7/16 DIN, N
Finish
Black Anodized Aluminum
Dimensions
19.65" x 5.97" x 10.63" (L x W x H)
499.11 x 151.64 x 270 mm
Weight
30 lbs.
Note
AC Power Adapter included
