Product Information

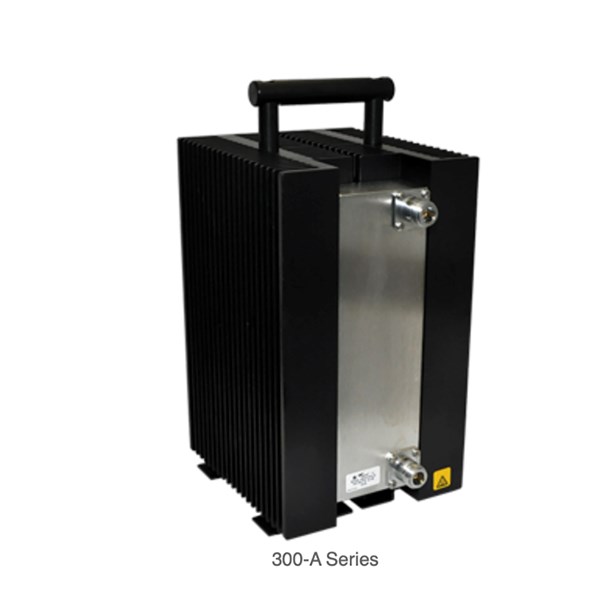

300-A Series, 300 Watt RF Power Attenuators are a valuable and reliable accessory for reducing power levels, for isolating components under test, for harmonic signal analysis, and as comparison standards. They are world renowned for their high-quality, robust construction and conservative power ratings.
- Self cooling design, needs no cooling plate.
- Frequencies up to 2.4 GHz.
- Fully shielded against production of extraneous radiation.
- Attenuator require no AC power.
- Rugged construction.
- Broadband operation.
- Other attenuation values may be available upon request.
- Models to cover all LTE frequencies.
product specifications:
Item No
300-A Series
Item Name
300 Watt Bi-Directional RF Attenuators
Power Rating
300 W
Connector
BNC, 7/16 DIN, N, TNC
VSWR and Frequency Range
1.10:1 from DC to 1 GHz
1.25:1 from 1 to 2.4 GHz
Coolant Method
Dry, Convection Cooled
Impedance Ω
50 Ohm
Operating Position
Any
Temperature
-40 to 40 °C (-40 to 104 °F)
PIM
-110 dBc Min.
AC Power
None
Humidity
95% non-condensing
Standard Attenuation Values
3, 6, 10, 20, 30 dB
Dimensions– L x W x H
7.3” x 5.4” x 10.9”
186 x 138 x 277 mm
Weight
12.0 lbs.
5.5 kg
Finish
Black Anodized Aluminum
