Ametek Asterion DC ASM series
Sku: AME-ASTERION-DC-ASM-Series
Enhanced 3-Channel Programmable DC Power Supplies
Product Information

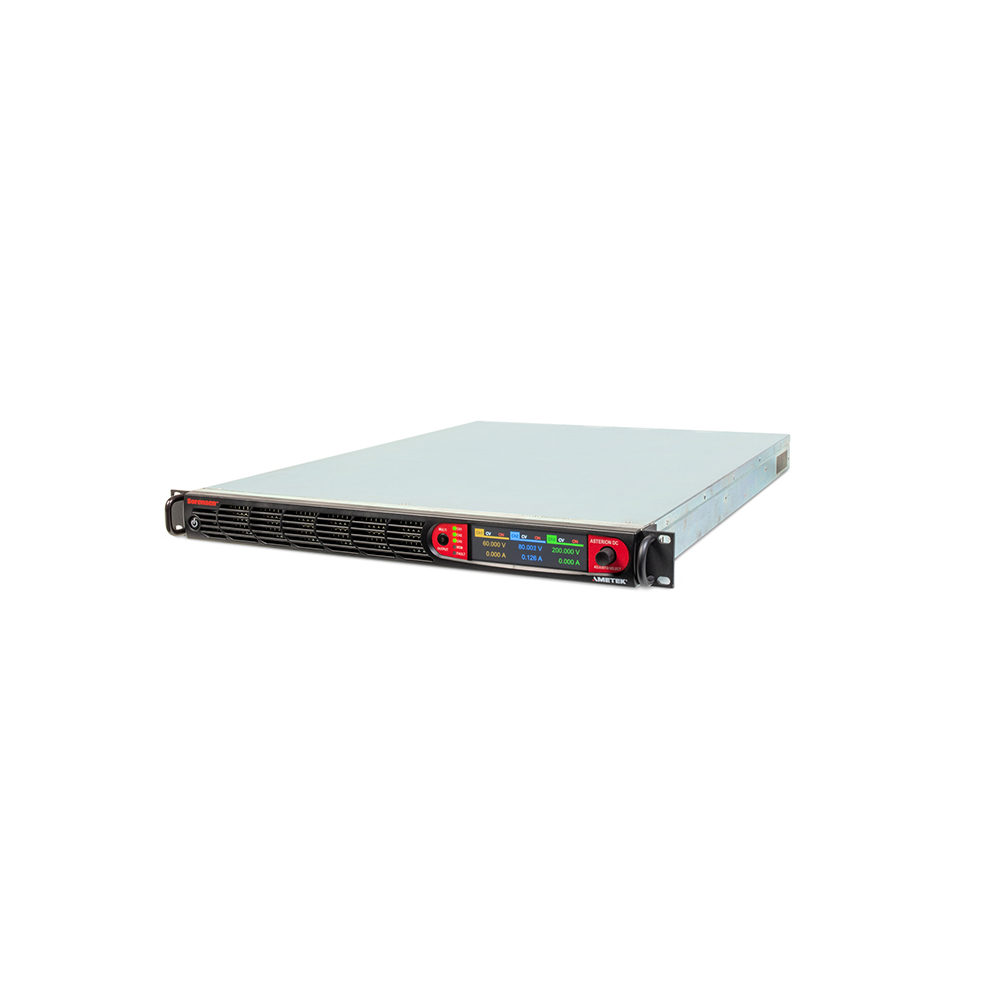

The Sorensen™ Asterion® DC ASM Series is the newest addition to the Asterion platform of power testing solutions. The new ASM Series features up to three independent, isolated, fixed-range outputs in a 1U high chassis.
The Asterion DC ASM Series, just like the Asterion DC Series, offers complete remote programming and control via Virtual Panels™ GUI, and intuitive front panel touch screen operation. Additionally, the instrument can be controlled via standard LXI Ethernet, USB, and RS232 control interfaces, as well as through the optional GPIB control interface or isolated analog programming.
Advanced Intelligent Control
The Asterion DC Series DC Power Supply is operated from the intuitive, easy-to-use front panel touchscreen display. Quickly access output programming parameters, measurements, configuration, and system settings from the touchscreen interface. Functions and parameters can be directly selected from the touch screen or by using the encoder selector button.The control resolution is adjusted by a dynamic rate change algorithm that combines the benefits of precise control over small parameter changes with quick sweeps through the entire range.Applications
The Asterion DC ASM Series is designed for testing today’s complex electronics, including telecommunications and commercial electronics requiring low-profile, lightweight DC Power supplies with high power density. Other applications include:
The Asterion DC Series DC Power Supply is operated from the intuitive, easy-to-use front panel touchscreen display. Quickly access output programming parameters, measurements, configuration, and system settings from the touchscreen interface. Functions and parameters can be directly selected from the touch screen or by using the encoder selector button.The control resolution is adjusted by a dynamic rate change algorithm that combines the benefits of precise control over small parameter changes with quick sweeps through the entire range.Applications
The Asterion DC ASM Series is designed for testing today’s complex electronics, including telecommunications and commercial electronics requiring low-profile, lightweight DC Power supplies with high power density. Other applications include:
- Military and aerospace electronics test
- Test & Measurement of ATE applications
- Semiconductor testing and burn-in
- Commercial manufacturing and process control
- Research and development
- Automotive component and battery testing
Key Highlights:
- Three independent, isolated 1,700W channels, 5,100W total
- 1U rack-mount chassis
- Eight output options
- Multi-language, intuitive, color touch panel control
- Global 3-Phase AC Input options for system phase balancing
- Active power factor correction (PFC)
- Multi-channel programmable sequencing, ramps, and delays
- Full remote control via Virtual Panels™ GUI
- Standard LXI Ethernet, USB and RS232 control interfaces
- Optional GPIB control interface or isolated analog programming
|
MODEL |
ASM
40-42 |
ASM
60-28 |
ASM
80-22 |
ASM 100-17 |
ASM 150-12 |
ASM 200-9 |
ASM 300-6 |
ASM 400-4.3 |
ASM 600-2.8 |
|
| Rated Output Voltage | V | 40 | 60 | 80 | 100 | 150 | 200 | 300 | 400 | 600 |
| Rated Output Current | A | 42 | 28 | 22 | 17 | 12 | 9 | 6 | 4.3 | 2.8 |
| Rated Output Power | W | 1680 | 1680 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 |
