CBP-ELEC2 CalBench Package

Sku: TIM-CBP-ELEC2

Add to Quote

Product Information

The CBP-ELEC2 A CalBench package that provides users with a combination of modules and accompanying products for calibrating electrical and electronic test equipment and devices. It allows users to test and verify a wide range of instruments, with a high level of automation to ensure rapid turnarounds.

The system features the 7051+ multifunction calibrator module with 12.1″ control centre display. This module combines a high performance electrical calibrator (source) with a 6.5 digit multimeter (measure). It is supplied with a range of accessories for applications and EasyCal software  for automated calibration, certificate creation and more.

Users can access the wide range of functions and features from one ergonomic and organised workspace. The control centre situates centrally in the console with communication to various modules. These include a 100 MHz oscilloscope with 20 MHz function generator, and 6 GHz frequency counter. These modules are operated via software applications on the control centre. These are operated via software applications on the control centre. Further modules include variable AC and DC power supplies, an LCR meter and insulation tester calibrator.

A range of accompaniments for service work are also supplied. These include a high performance solder and re-work station, circuit board holder, turntable, service tool kit, ESD matting and magnifying lamp.

Calibration Capabilities

Calibration Capabilities

The CBP-ELEC2 has a combination of modules for precision calibration of various electrical and electronic test equipment including:

  • Multimeters, signal sources, clamp meters, data loggers
  • Continuity testers, decade boxes, RCL meters
  • Insulation testers, megohmmeters, optical tachometers
  • Oscilloscopes, frequency meters, frequency counters, timer counters
  • Transmitters, RTDs, thermocouples (electrical simulation & measurement)

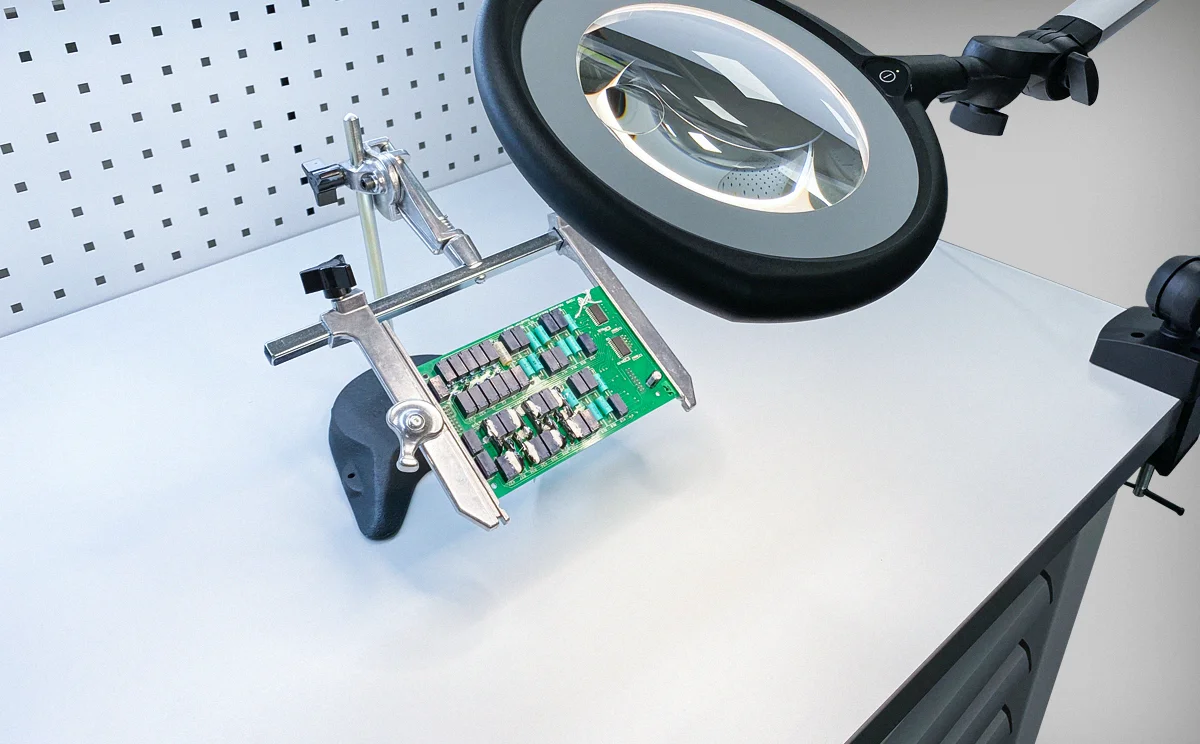

Service and Repair Applications

Service and Repair Applications

The CBP-ELEC2 has modules and extras suitable for electrical and electronic diagnostics and repair work. The oscilloscope module is suitable for signal analysis and variable AC and DC power supplies can be used for testing and checking electronic equipment and components.

In addition to module operations the package includes a high performance solder and re-work station, magnifying lamp, circuit board holder, ESD kit with matting, and service tool case. This equipment is used on the bench for service applications commonly required in test facilities performing calibration work.

  • Calibrate electrical & electronic test tools
  • Source/measure V, I , Ω, Hz, temperature
  • Electrical multifunction calibrator module
  • 12.1” touch screen control centre
  • Oscilloscope & frequency counter modules
  • Variable AC and DC power supply modules
  • Precision LCR meter module
  • Insulation tester calibrator module
  • Environmental monitor/datalogger included
  • Solder and re-work station with accessories
  • Service tool case and ESD workstation kit
Bench Type and Fittings
Item Qty Code Basic Description Basic Purpose
1 1 7080-HD CalBench Heavy Duty Version (W 2000 x D 850 x H 1568 mm)

Framework bench style with worktop, perforated panel, primary console with 7082 mains power controller module.

 Provides an ergonomic workspace for various applications. Modules are fitted to the primary console for the necessary workload.
2 1 7185 ESD grey laminate worktop for CalBench

Chipboard, conductive core, 3 mm ABS edges, antistatic, scratch, impact and stain resistant.

 A high quality durable anti-static worktop for the CalBench.
3 1 7137 Perfo Panel Option: 40 piece Tool Hook Kit For holding various tools and accessories.
4 1 7139 Perfo Panel Option: Shelf (W 450 x D 250 x H 130 mm) Suitable for storing equipment and tools.
5 1 7141 Perfo Panel Option: Storage Bin Strip (W 450 x H 75 mm)
Supplied with 4 x 1 L bins.		 For storage of components and small tools.
6 1 7157 Articulating Keyboard Tray for CalBench

Supplied pre-fitted to worktop.

 Situates the keyboard and mouse for the control centre module operations. Can be positioned under bench when not in use.
7 1 8134 Mobile 4 Drawer Unit, ESD, RAL 7035 light grey colour Mobile storage that can situate under the CalBench.

Modules

Item Qty Code Basic Description Basic Purpose
8 1 7051+ Multifunction Calibrator and Control Centre Module

Advanced system package for precision source and measure capabilities. Integral calibrator, 6.5 digit multimeter, PC and EasyCal software. Operation via 12.1 ” touch screen display. Built-in communication with compatible modules.

 Source and measure electrical, electronic, frequency, temperature. Enables users to calibrate process and electrical instruments like sensors, multimeters, clamp meters, scopes and more. EasyCal software and accessories included for automation, administration and certificate generation.
9 1 9769 7051 Internal Option: 2.2 GHz Levelled Sine Generator An internally fitted option that enables the calibrator to output a pure sine wave up to 2.2 GHz, for calibration of oscilloscopes.
10 1 CCPAD Control Centre Numeric Keypad Module with jog dial Provides an ergonomic method of using the control centre module without mouse or keyboard.
11 1 CCSCOPE-5243D Control Centre Integral Advanced Oscilloscope (2 channel)

100 MHz with connection module, control centre operation.

 Advanced oscilloscope for R&M, testing applications, fault finding and diagnostics. Features a 20 MHz function generator.
12 1 CC-FRQC Control Centre Integral Frequency Counter

6000 MHz with connection module, control centre operation.

 For frequency measurement in testing applications, fault diagnostics and repair work.
13 1 5068B Insulation Tester Calibration Module (100 kΩ to 10 GΩ) For calibrating insulation testers and megohmmeters with test voltages up to 2.5 kV.
14 1 7033 High Precision LCR Meter Module (200 kHz) Used to measure inductance, capacitance and resistance of components and devices at various frequencies.
15 1 7088D Adjustable AC Supply Module with Digital Displays

Variable output voltage from 0 to 110% above line input.

 Provides variable 50 Hz AC power up to 10 A with two digital meters monitoring the output voltage and current. For general purpose use and R&M applications.
16 1 M-PSW250-4.5 Multi-Range DC Power Supply Module

0 to 250 V, 0 to 4.5 A, 360 W.

 A regulated high range DC supply for inputting stable voltages, used for on-bench power to applications, and testing devices and circuits.
Accompanying Products & Extras
Item Qty Code Basic Description Basic Purpose
17 1 7145 High Performance Soldering/De-soldering/Rework Station

Includes soldering iron, de-soldering tool & hot air rework tool, standard tips and nozzles.

 High quality soldering, for electronics, components etc. A comprehensive unit that features a built-in pump for vacuum and air flow, and three simultaneously powered ports.
18 1 7146 Extra Solder Tips (6 piece set) A selection of soldering tips for use with the solder station module.
19 1 TL90 High Performance Magnification and Inspection Light A magnifier with 48 premium LEDs to illuminate a 6 ” wide-angle, distortion-free lens. For inspection of circuit boards etc.
20 1 7180 Circuit Board Holder For holding circuit boards with quick and easy rotation and component insertion/soldering.
21 1 7154 Benchtop turntable with locking mechanism For practical placement of devices and parts being worked on.
22 1 7183 Electronic Service Case (76 tools) A comprehensive selection of tools for electrical and electronic service work.
23 1 7186 ESD Workstation Kit for CalBench

Benchtop mat, signage, bonding plugs, wrist strap & leads.

 An antistatic mat to cover the benchtop when needed. A kit to eliminate static electricity and prevent ESD damage.
24 1 8002 CalBench Environmental Monitoring System

With magnetic rear for perfo panel mounting.

 Measures and logs temperature, relative humidity and barometric pressure, with control centre interface.
25 1 CERTS Traceable Calibration Certificates

For all test modules and additional test equipment.

 Certifies all measurement modules and additional instruments have been tested in the TE factory to international standards.
