CBP-ELEC3 CalBench Package

Sku: TIM-CBP-ELEC3

Add to Quote

Product Information

The CBP-ELEC3 is a package featuring a CalBench with modules and extras for common electrical and electronic service and testing applications. It includes the 5025E benchtop multifunction calibrator that provides a solution for end users to perform calibration of engineer test tools like multimeters and clamp meters. EasyCal calibration software runs on the supplied PC workstation, enabling users to automate and manage the calibration process. Peripherals are supplied, including a printers and a bar code reader.

This package creates a highly organised workspace with modules such as variable AC and DC power supplies, an oscilloscope, function generator and digital multimeter. This module selection provides engineers with a range of features and functions to perform service work where signal generation and analysis is required. The benchtop instruments add further calibration capabilities.

Additionally a soldering station module allows users to perform repairs of devices and work on electrical components. Accessories include a 6 piece tip set, magnifying lamp and circuit board holder. An antistatic workstation kit is supplied, featuring matting to cover the worktop, bonding plugs, wrist strap and leads. For storage the bench is fitted with a 3 drawer unit, and the perforated panel has a selection of quick access storage fittings. These include tool hooks and holders, shelf and plastic bins.

Calibration Capabilities

Calibration Capabilities

The CBP-ELEC3 has a combination of modules and benchtop calibration instruments to enable users to test and verify a wide range of test tools and instrumentation including:

  • Multimeters, signal sources, clamp meters, data loggers
  • Power meters, watt meters, decade boxes, power supplies
  • Insulation testers, megohmmeters, optical tachometers
  • Transmitters, RTDs, thermocouples (electrical simulation & measurement)

Service and Repair Applications

Service and Repair Applications

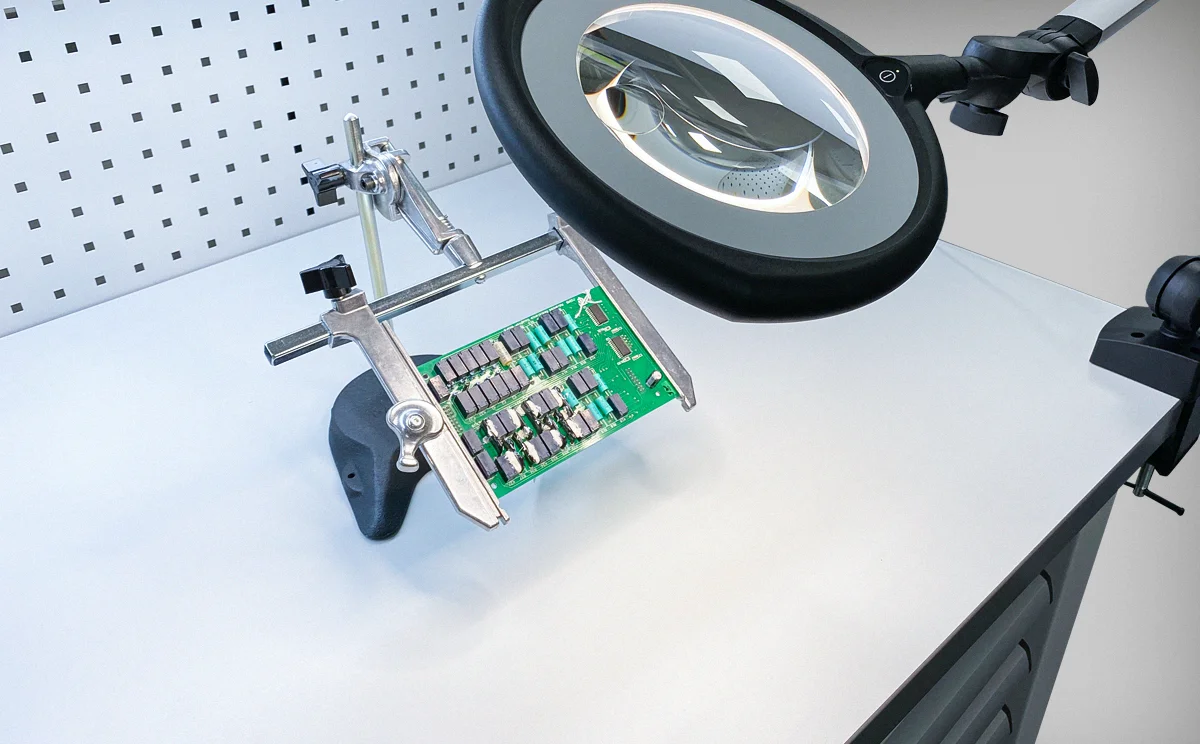

The CBP-ELEC3 has modules and extras suitable for electrical and electronic diagnostics and repair work. The oscilloscope module is suitable for signal analysis and variable AC and DC power supplies can be used for testing and checking electronic equipment and components.

In addition the package includes a high performance solder station module, magnifying lamp, circuit board holder and ESD kit with matting. This equipment is used on the bench for service applications commonly required in test facilities performing calibration work.

  • CalBench for calibration and R&M work
  • Oscilloscope and digital multimeter modules
  • Variable AC and DC power supply modules
  • Function generator with counter module
  • Benchtop electrical multifunction calibrator
  • PC workstation running EasyCal software
  • Soldering station module with accessories
  • Magnifying lamp and circuit board holder
  • Antistatic workstation kit with matting
  • Suitable for E&I workshops, test and calibration labs

Bench Type and Fittings

Item Qty Code Basic Description Basic Purpose
1 1 7080-HD CalBench Heavy Duty Version (W 2000 x D 850 x H 1568 mm)

Framework bench style with worktop, perforated panel, primary console with 7082 mains power controller module.

 Provides an ergonomic workspace for various applications. Modules are fitted to the primary console for the necessary workload.
2 1 7125 Perfo Panel Option: 20 piece Tool Hook Kit For holding various tools and accessories.
3 1 7139 Perfo Panel Option: Shelf (W 450 x D 250 x H 130 mm) Suitable for storing equipment and tools.
4 1 7133 Magnet Set for Perfo Panel (10 x round, 10 x hook type) For securing documents and small tools to perfo panel.
5 1 7141 Perfo Panel Option: Storage Bin Strip (W 450 x H 75 mm)
Supplied with 4 x 1 L bins.		 For storage of components and small tools.
6 1 7122 3 Drawer Unit (W 525 x D 550 x H 450 mm) For storage of equipment, tools, documents etc.
7 1 7123 Under Bench CPU Holder For housing computer (CBPC) under worktop.
Modules
Item Qty Code Basic Description Basic Purpose
8 1 5065B 6.5 Digital Multimeter Module

AC/DC voltage, AC/DC current, 2/4 wire resistance, frequency, period, diode, continuity, thermocouples and RTD.

 A versatile 6½ digit multimeter module with 19 measurement functions. Simple operation, stability, and high accuracy make the 5065B an ideal DMM for a variety of applications.
9 1 7023 Digital Oscilloscope Module

150 MHz, 2 channel, colour LCD display.

 Oscilloscope ideal for maintenance of electronic equipment and general purpose laboratory work.
10 1 8027 25 MHz Arbitrary DDS Function Generator Module

With counter, sweep, AM, FM and FSK modulation.

 Used to generate different types of electrical waveforms over the frequency range, and frequency measurement for fault diagnostics and repair work.
11 1 7088D Adjustable AC Supply Module with Digital Displays

Variable output voltage from 0 to 110% above line input.

 Provides variable 50 Hz AC power up to 10 A with two digital meters monitoring the output voltage and current. For general purpose use and R&M applications.
12 1 7054 120 V DC 0.75 A Adjustable Power Supply Module – Digital A regulated DC supply for inputting stable voltages, for bench testing of devices and circuits.
13 1 7034 Digital Soldering Station Module

Includes soldering iron, standard tip and holder.

 High quality soldering, for electronics, components etc.
Accompanying Products & Extras
Item Qty Code Basic Description Basic Purpose
14 1 7146 Extra Solder Tips (6 piece set) A selection of soldering tips for use with the solder station module.
15 1 5025E-S2 Benchtop Electrical Multifunction Calibrator

AC/DC 1050 V / 22 A, variable resistance, Pt100 simulation, thermocouple simulation, conductance, capacitance, power calibration, 10 MHz digital frequency.

 Source & simulation of signals for electrical, electronic, frequency, temperature calibration. Enables users to test and verify process and electrical instruments like sensors, multimeters, clamp meters and more.
16 1 CBPC CalBench PC Workstation

Includes high performance PC, touch screen monitor, TL102 mounting arm, keyboard and mouse.

 Enables users to access necessary programs and data. An ergonomic mounting arm fixes the monitor to the CalBench perfo panel enabling it to be positioned away from the tabletop when not in use. The PC is housed in the 7123 under worktop holder.
17 1 ECFLA EasyCal Calibration Software Software for automated calibration and workflow management. It enables scheduling, booking in, control & readback from compatible instruments, optimised calibration processes. Create, print & issue calibration certificates, labels & reports.
18 1 9795 Printer and Connectivity Kit

Printer, DVD-RW, USB Hub, Numeric Key Pad & Memory Stick.

 Peripherals for use with the control centre module, to connect and print documents and data, storage and backups.
19 1 9778 Cal and ID Label Printer Print calibration labels, bar codes, and ID labels for tagging devices and instruments.
20 1 9777 Bar Code Reader For reading instruments/devices that have been bar coded. Enables instant identification within EasyCal.
21 1 9780 Clamp Meter Adaptor Used with 5025E to calibrate clamp meters.
22 1 9773 Optical Tacho Adaptor Used with 5025E to calibrate optical tachometers.
23 1 9796 Premium Test Lead Set Provides necessary connections for testing applications.
24 1 5069 Benchtop Insulation Tester Calibrator

Decade resistance 100 kΩ – 100 GΩ.

 For calibrating insulation testers and megohmmeters with test voltages up to 10 kV.
25 1 7181 Magnifying Lamp

Magnifier with 175 mm diameter, 1.75x magnifying lens.

 Magnification and illumination on the benchtop, for inspection of circuit boards, components etc.
26 1 7182 Magnification and illumination on the benchtop, for inspection of circuit boards, components etc. Table base for 7181, allowing the unit to be moved around the bench work area.
27 1 7180 Circuit Board Holder For holding circuit boards with quick and easy rotation and component insertion/soldering.
28 1 7186 ESD Workstation Kit for CalBench

Benchtop mat, signage, bonding plugs, wrist strap & leads.

 An antistatic mat to cover the benchtop when needed. A kit to eliminate static electricity and prevent ESD damage.
29 1 CERTS Traceable Calibration Certificates

For all test modules and additional test equipment.

 Certifies all measurement modules and additional instruments have been tested in the TE factory to international standards.
