CBP-WW2 CalBench Package

Sku: TIM-CBP-WW2

Add to Quote

Product Information

The CBP-WW2 is an advanced CalBench package for calibration of a wide range of instrumentation, test tools and devices. It provides users with source and measure functions for electrical, pressure and temperature applications. Automated calibration can be performed with EasyCal software and compatible modules.

The system features the 7051+ multifunction calibrator module with 12.1″ control centre display. This module combines a high performance electrical calibrator (source) with a 6.5 digit multimeter (measure), all operated via a PC touch screen interface. Both manual control applications and EasyCal software can be used. Additionally, the 8060 module provides further functionality for source and measurement of process signals, making the package suitable for testing plant instrumentation. EasyCal provides the platform for calibration management, and communicates with modules for software driven test procedures. Peripherals include printer kits for calibration certificates and labels.

For pneumatic pressure the CalBench features an automatic controller module for vacuum to 40 bar (600 psi). Then four high accuracy measurement modules for applications to 700 bar (10,000 psi), typically used with the supplied hydraulic and pneumatic pumps. Further modules include fixed and variable DC power supplies, and control center operated scope and function generator modules. For temperature calibration, a dry block calibrator is included for coverage from ambient to 660 °C.

Electrical Calibration

Calibration Capabilities

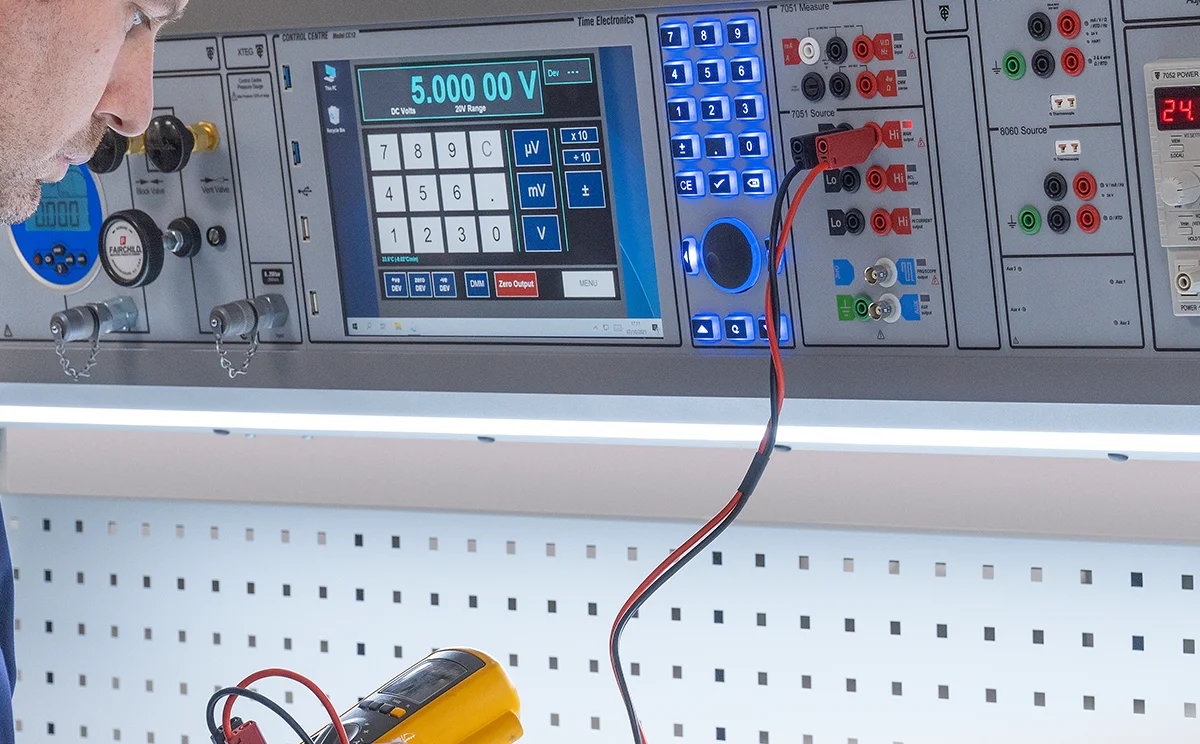

The CBP-WW2 features the 7051+ electrical multifunction calibrator & digital multimeter module. It provides users with automated calibration capabilities to cover a wide range of electrical and electronic test tools including:

  • Multimeters, signal sources, clamp meters, data loggers
  • Calibrators, decade boxes, tachometers, conductance meters
  • Oscilloscopes, frequency meters, frequency counters, timer counters

Pressure Calibration

Pressure Calibration

For pressure an automatic controller module is used for pneumatic calibration from vacuum to 40 bar. A selection of precision measurement modules providing range coverage to 700 bar. Accompanying pneumatic and hydraulic pumps are supplied. Calibrate pressure instrumentation such as:

  • Analogue and digital gauges, indicators, manometers
  • Calibrators, sensors, transducers, transmitters
  • Switches, valves, controllers, chart recorders

Temperature Calibration

Temperature Calibration

The CBP-WW2 enables users to perform efficient calibration of temperature instrumentation. EasyCal can control the dry block calibrator whilst reading back the temperature measurement of the sensor under test on the 7051 or 8060 module. Additionally the 7085A scanner module enables multi-channel measurements to be performed. Calibrate various products including:

  • Sensors, transmitters, indicators, thermometers
  • RTDs, thermocouples, recorders, controllers
  • Process calibrators, PRTs, thermistors
  • Advanced automatic CalBench system
  • Electrical & process calibrator modules
  • 12.1” touch screen PC control centre module
  • Source/measure V, I , Ω, Hz, temperature
  • Auto-pneumatic pressure controller module
  • 4 precision pressure measurement modules
  • Oscilloscope module, DC power supplies
  • Dry block calibrator for up to 660°C
  • Pressure pumps, instrumentation test stand with manifold
  • Pressure adaptors & fittings kit, CalBench tool kit
  • EasyCal calibration software, peripherals supplied
Bench Type and Fittings
Item Qty Code Basic Description Basic Purpose
1 1 7080-HD

CalBench Heavy Duty Version (W 2000 x D 850 x H 1568 mm)

Framework bench style with worktop, perforated panel, primary console with 7082 mains power controller module.

 Provides an ergonomic workspace for various applications. Modules are fitted to the primary console for the necessary workload.
2 1 7137 Perfo Panel Option: 40 piece Tool Hook Kit For holding various tools and accessories.
3 1 7139 Perfo Panel Option: Shelf (W 450 x D 250 x H 130 mm) Suitable for storing equipment and tools.
4 1 7141 Perfo Panel Option: Storage Bin Strip (W 450 x H 75 mm)
Supplied with 4 x 1 L bins.		 For storage of components and small tools.
5 1 7157

Articulating Keyboard Tray for CalBench

Supplied pre-fitted to worktop.

 Situates the keyboard and mouse for the control centre module operations. Can be positioned under bench when not in use.
6 1 8134

Mobile 4 Drawer Unit, ESD, RAL 7035 light grey colour

 Mobile storage that can situate under the CalBench.
7 1 7123

Under bench CPU/Dry Block Calibrator Holder

 For storing a dry block calibrator when not in use.
Modules
Item Qty Code Basic Description Basic Purpose
8 1 7051+

Multifunction Calibrator and Control Centre Module

Advanced system package for precision source and measure capabilities. Integral calibrator, 6.5 digit multimeter, PC and EasyCal software. Operation via 12.1 ” touch screen display. Built-in communication with compatible modules.

 Source and measure electrical, electronic, frequency, temperature. Enables users to calibrate process and electrical instruments like sensors, multimeters, clamp meters, scopes and more. EasyCal software and accessories included for automation, administration and certificate generation.
9 1 8060-PO

Process Calibrator Module with control centre operation

Connection module, operation via control centre.

 Source & measure signals to calibrate process instrumentation like transmitters, RTDs, thermocouples and more. Manual control application and EasyCal software operation.
10 1 CCPAD

Control Centre Numeric Keypad Module with jog dial

 Provides an ergonomic method of using the control centre module without mouse or keyboard.
11 1 CCSCOPE-5243D

Control Centre Integral Advanced Oscilloscope (2 channel)

100 MHz with connection module, control centre operation.

 Advanced oscilloscope for R&M, testing applications, fault finding and diagnostics. Features a 20 MHz function generator.
12 1 8030B/G40b/G20b/CV4b/BARO

Automatic Pressure Calibrator Module with multiple ranges

Sensor 1: 0 to 40 bar (600 psi), 0.01 % FS accuracy.
Sensor 2: 0 to 20 bar (300 psi), 0.01 % FS accuracy.
Sensor 3: Vacuum to 4 bar (60 psi), 0.01 % FS accuracy.
Sensor 4: Barometric Reference.

 For automated pneumatic pressure calibration of gauges, transmitters etc. Auto-ranging capabilities across 3 sensors from vacuum to 40 bar (600 psi). Absolute pressure emulation with barometric reference. Supplied with contamination trap & hoses.
13 1 MTEG-G200b/0.02

Digital Pressure Gauge Module

0 to 200 bar (3000 psi), 0.02 % FS accuracy.

 For high range pneumatic pressure calibration work, used with supplied benchtop pump.
14 1 XTEG-G700b/0.02/M

Pressure Measurement Module with Control Centre Interface

0 to 700 bar (10,000 psi), 0.02 % FS accuracy.

 For hydraulic calibration with accompanying 7195 benchtop pump.
15 1 XTEG-G100b/0.02/M

Pressure Measurement Module with Control Centre Interface

0 to 100 bar (1500 psi), 0.02 % FS accuracy.

 For high range pressure calibration work, commonly used with supplied pneumatic pump.
16 1 XTEG-CV2b/0.02/M

Pressure Measurement Module with Control Centre Interface

Vacuum to 2 bar (30 psi), 0.02 % FS accuracy.

 For low range pressure calibration.
Used with pump or T-piece method from controlled output module.
17 1 7085A

Auto Switching Temperature Distribution Module

 Connection module to enable batch testing of temperature devices like thermocouples.
18 1 M-PSW80-13.5

Multi-Range DC Power Supply Module

0 to 80 V, 0 to 13.5 A, 360 W.

 A regulated DC supply for inputting stable voltages, used for on-bench power to applications, and testing devices and circuits.
19 1 7087

Quad DC Power Supply Module

6 V (20 A), 12 V (10 A), 24 V (6 A), 48 V (3 A).

 Provides a DC power supply to various instrumentation and devices under test.
Accompanying Products & Extras
Item Qty Code Basic Description Basic Purpose
20 1 7149

Electrical Vacuum Pump

 Provides a vacuum for pressure modules.
21 1 7149-HCO

Housing & Connectivity Option for 7149 vacuum pump

 Compact housing for the 7149 pump, situated under bench.
Sound-proofed and power on/off via 7082 module on CalBench.
22 1 7195

Benchtop Hydraulic Pressure Calibration Pump

Vacuum to 700 bar (10,000 psi).

 Used for hydraulic pressure calibration with measurement modules.
23 1 7194A

Benchtop Pneumatic High Pressure Calibration Pump

Vacuum to 200 bar (3,000 psi).

 Pressure generation to 200 bar, suitable for use with pressure modules when compressed air source is not available.
24 1 7161

Dual Port Benchtop Manifold

For Pneumatic use from vacuum to 200 bar (3000 psi).

 Compact pneumatic manifold that provides two output ports.
Hand-tight connectors for pressure instrumentation under test.
25 1 7198

Pressure Calibration Accessories Kit

A comprehensive selection of fittings, adaptors and hoses.

 Provides all the required pressure connections and fittings for modules and pumps to UUTs.
26 1 8100

Benchtop Instrumentation Test Stand

 For fast and ergonomic positioning of UUTs like transmitters & gauges on the CalBench worktop.
27 1 8072

Dry Block Calibrator (28 to 660 °C)

With metric multi hole insert (1×3, 2×4, 1×5, 1×6, 1×9 mm), blank insert, EasyCal software driver pre-configured on control centre.

 Temperature source for the calibration of probes, RTDs, and thermocouples. Manual control and EasyCal software compatible to automate calibration applications.
28 1 8072-METP

Pack of 16 Metric Inserts for 8072

3 mm to 20 mm holes

 Inserts for use with different probe sizes, used with 8072.
29 1 8002

CalBench Environmental Monitoring System

With magnetic rear for perfo panel mounting.

 Measures and logs temperature, relative humidity and barometric pressure, with control centre interface.
30 1 CERTS

Traceable Calibration Certificates

For all test modules and additional test equipment.

 Certifies all measurement modules and additional instruments have been tested in the TE factory to international standards.

Fore more information click here
