CBP-WW4B CalBench Package

Sku: TIM-CBP-WW4B

Product Information

The CBP-WW4B CalBench is a package for testing and calibrating electrical, pressure, and temperature instrumentation. The selection of modules and accompanying products provide users with a flexible and high performance workstation. It can be operated manually or utilised for software driven calibration.

The 8060+ module situates centrally in the console, providing source, simulation and measurement of process signals, HART communication and 24 V loop power. It features an integral multimeter, and a PC control centre with 12.1” touch screen display. EasyCal software is pre-loaded and communicates with pressure modules and the benchtop multifunction calibrator (5025E-S2) for automated calibration and test management. The 5025E-S2 connects to the control centre, and provides a solution for calibrating engineer test tools like multimeters and clamp meters.

For pressure calibration, two high accuracy digital gauge modules feature for vacuum to 7 bar, and 20 bar.  These modules are used with the supplied pneumatic benchtop pump. Further modules include fixed and variable DC and AC power supplies, and a control centre operated oscilloscope module. Storage is provided by an under bench drawer unit, perfo panel hooks, shelf and parts bins. Calibration accessories include a pressure adaptors kit, clamp meter and tacho meter calibration adaptors.

Electrical Calibration

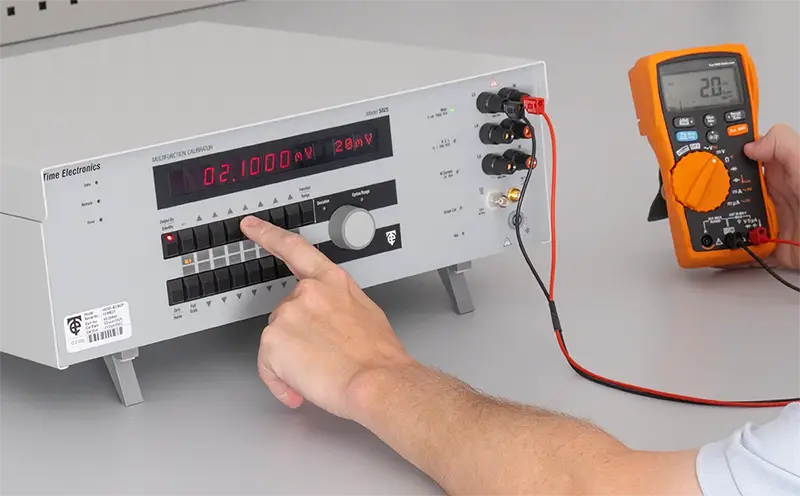

Electrical Calibration

The package includes electrical sourcing functionality with the 5025E multifunction calibrator, and modules for measurement applications. It provides users with automated calibration capabilities to cover a wide range of electrical and electronic equipment including:

  • Multimeters, analogue meters, clamp meters, data loggers
  • Calibrators, decade boxes, conductance meters, tachometers
  • Power meters, watt meters, power supplies

Pressure Calibration

Pressure Calibration

The CBP-WW4B features two main pressure modules for calibration work. These provide precision measurement for vacuum to 7 bar (100 psi) and 0 to 20 bar (300 psi). Both are used with the supplied pneumatic calibration pump. Calibrate pressure instrumentation such as:

  • Analogue and digital gauges, indicators, manometers
  • Calibrators, sensors, transducers, transmitters
  • Switches, valves, controllers, chart recorders

Temperature Calibration

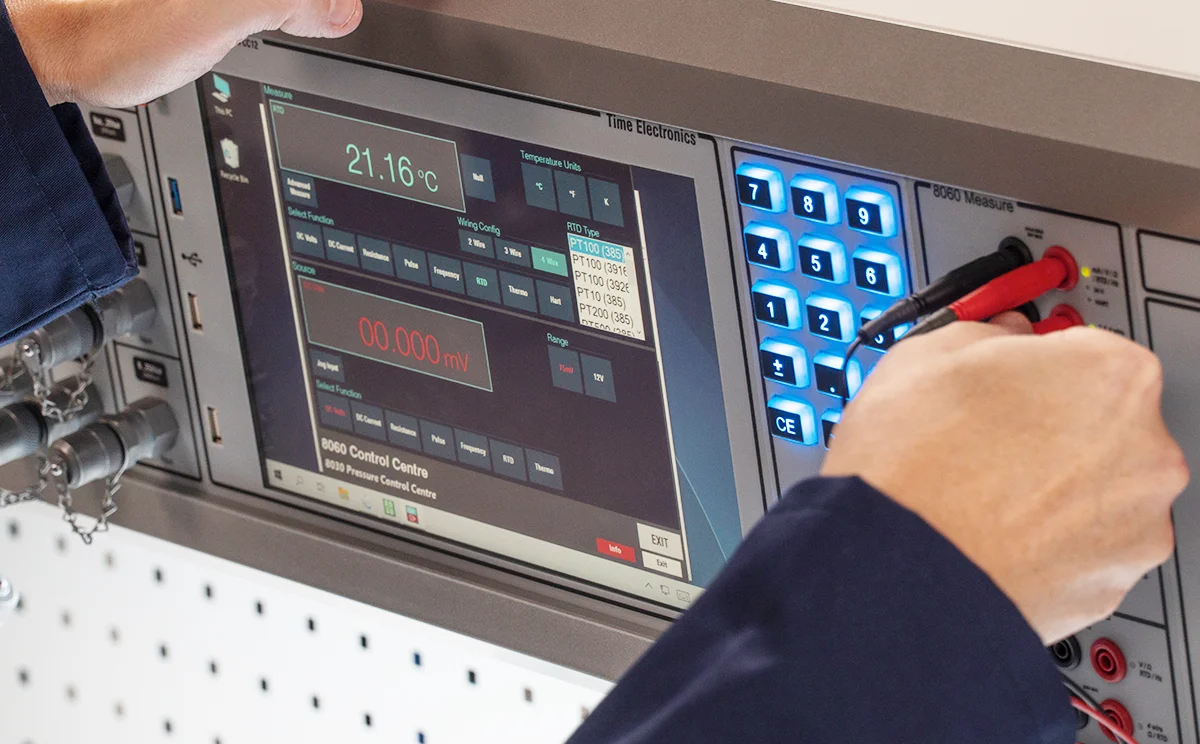

Temperature Calibration

The CBP-WW4B features the 8060 process calibrator that has RTD and thermocouple simulation and measurement. It can be used manually or via EasyCal software to automate calibration of transmitters and other devices.

Dry block calibrators are optional extras, for temperature sourcing on the benchtop. When supplied each unit is EasyCal software compatible for temperature control and readback.

  • Instrument & electrical CalBench package
  • Process calibrator/multimeter/PC module
  • Source/measure V, I , Ω, Hz, temperature
  • Benchtop electrical multifunction calibrator
  • 2 precision pressure measurement modules
  • Variable DC and AC power supply modules
  • Control centre operated oscilloscope module
  • Variable DC and AC power supply modules
  • Pneumatic benchtop pressure pump supplied
  • Pressure adaptors kit, CalBench tool kit
  • EasyCal calibration software, peripherals supplied
Bench Type and Fittings
Item Qty Code Basic Description Basic Purpose
1 1 7080-HD CalBench Heavy Duty Version (W 2000 x D 850 x H 1568 mm)

Framework bench style with worktop, perforated panel, primary console with 7082 mains power controller module.

 Provides an ergonomic workspace for various applications. Modules are fitted to the primary console for the necessary workload.
2 1 7125 Perfo Panel Option: 20 piece Tool Hook Kit For holding various tools and accessories.
3 1 7139 Perfo Panel Option: Shelf (W 450 x D 250 x H 130 mm) Suitable for storing equipment and tools.
4 1 7141 Perfo Panel Option: Storage Bin Strip (W 450 x H 75 mm)
Supplied with 4 x 1 L bins.		 For storage of components and small tools.
5 1 7124 4 Drawer Unit (W 525 x D 550 x H 600 mm) For storage of equipment, tools, documents etc.
Accompanying Products & Extras
Item Qty Code Basic Description Basic Purpose
14 1 7192 Pneumatic Benchtop Pump

Vacuum to 25 bar (350 psi).

 Enables precise controlled input of pressure for pneumatic work. Suitable for use with MTEG measurement modules.
15 1 ADK12 Pressure Calibration Adaptor Kit

A kit with a selection of 12 commonly used adaptors.

 Provides adaptors for common pressure connections from modules and pumps to UUTs.
16 1 5025E-S2 Benchtop Electrical Multifunction Calibrator

AC/DC 1050 V / 22 A, variable resistance, Pt100 simulation, thermocouple simulation, conductance, capacitance, power calibration, 10 MHz digital frequency.

 Source & simulation of signals for electrical, electronic, frequency, temperature calibration. Enables users to test and verify process and electrical instruments like sensors, multimeters, clamp meters and more.
17 1 9780 Clamp Meter Adaptor Used with 5025E to calibrate clamp meters.
18 1 9773 Optical Tacho Adaptor Used with 5025E to calibrate optical tachometers.
19 1 CERTS Traceable Calibration CertificatesFor all test modules and additional test equipment. Certifies all measurement modules and additional instruments have been tested in the TE factory to international standards.
Modules
Item Qty Code Basic Description Basic Purpose
6 1 8060+ Multifunction Process Calibrator and Control Centre Module

Advanced system package for precision source and measure capabilities. Integral process calibrator, 6.5 digit multimeter, PC and EasyCal software. Operation via 12.1 ” touch screen display. Built-in communication with compatible modules.

 Source and measure process signals for electrical, frequency, temperature. Enables users to calibrate process instrumentation like transmitters, RTDs, thermocouples and more. EasyCal software and accessories included for automation, administration and certificate generation.
7 1 CCPAD Control Centre Numeric Keypad Module with jog dial Provides an ergonomic method of using the control centre module without mouse or keyboard.
8 1 CCSCOPE-2208B Control Centre Integral Oscilloscope (2 channel)

100 MHz with connection module, control centre operation.

 For basic R&M applications, fault finding and diagnostic work.
9 1 MTEG-CV7b/0.05 Digital Pressure Gauge Module

Vacuum to 7 bar (100 psi), 0.05 % FS accuracy.

 For vacuum to 7 bar pneumatic pressure calibration work, used with supplied benchtop pump.
10 1 MTEG-G20b/0.05 Digital Pressure Gauge Module

0 to 20 bar (300 psi), 0.05 % FS accuracy.

 For mid range pneumatic pressure calibration work, used with supplied benchtop pump.
11 1 7056 Dual Adjustable DC Power Supply Module

2 x 30 V DC 3 A.

 A variable DC supply to supplement various applications.
12 1 7083 Dual 24 V Fixed DC Power Supply Module For powering loop instrumentation, transmitters and other equipment requiring 24 V DC.
13 1 7088D Adjustable AC Supply Module with Digital Displays

Variable output voltage from 0 to 110% above line input.

 Provides variable 50 Hz AC power up to 10 A with two digital meters monitoring the output voltage and current. For general purpose use and R&M applications.

Fore more information click here

Downloads

File Name File Size Language Format
CBP-WW4B CalBench Package Data Sheet 590 kB EN PDF
CalBench Packages Brochure 11.5 MB EN PDF
