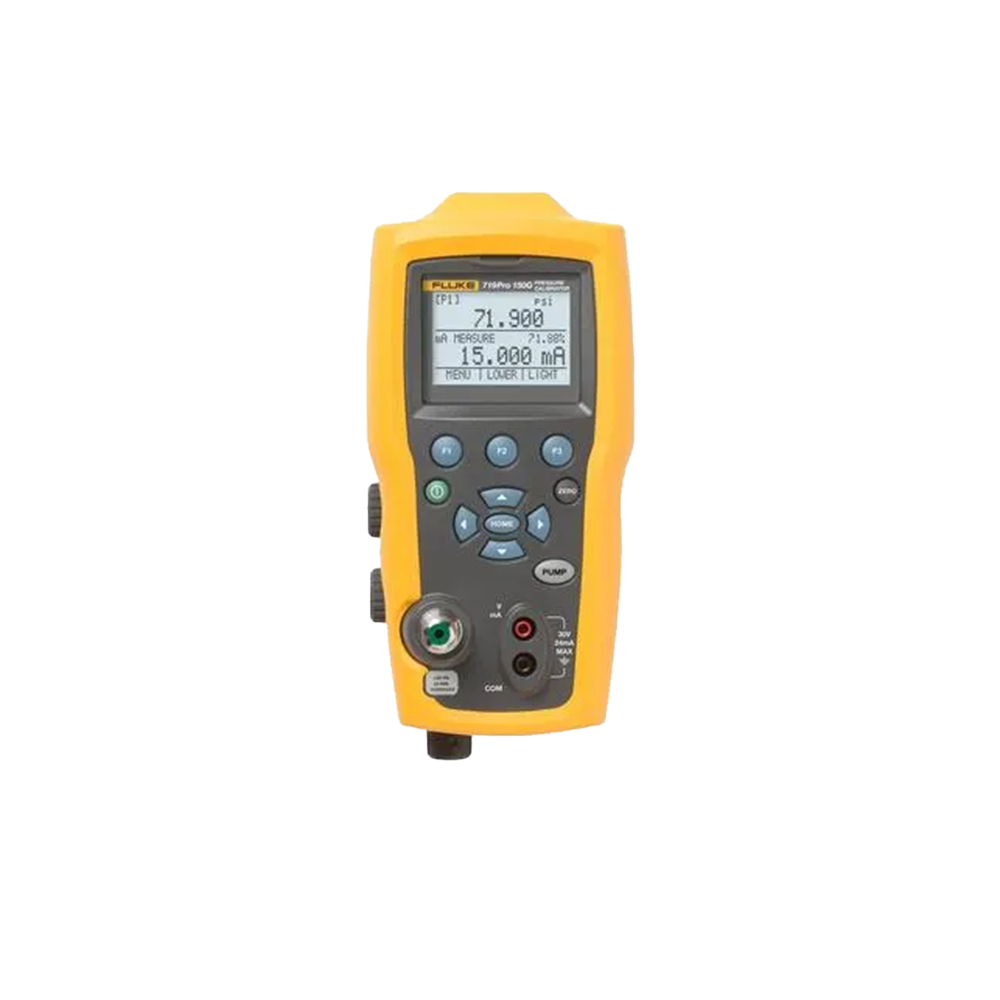

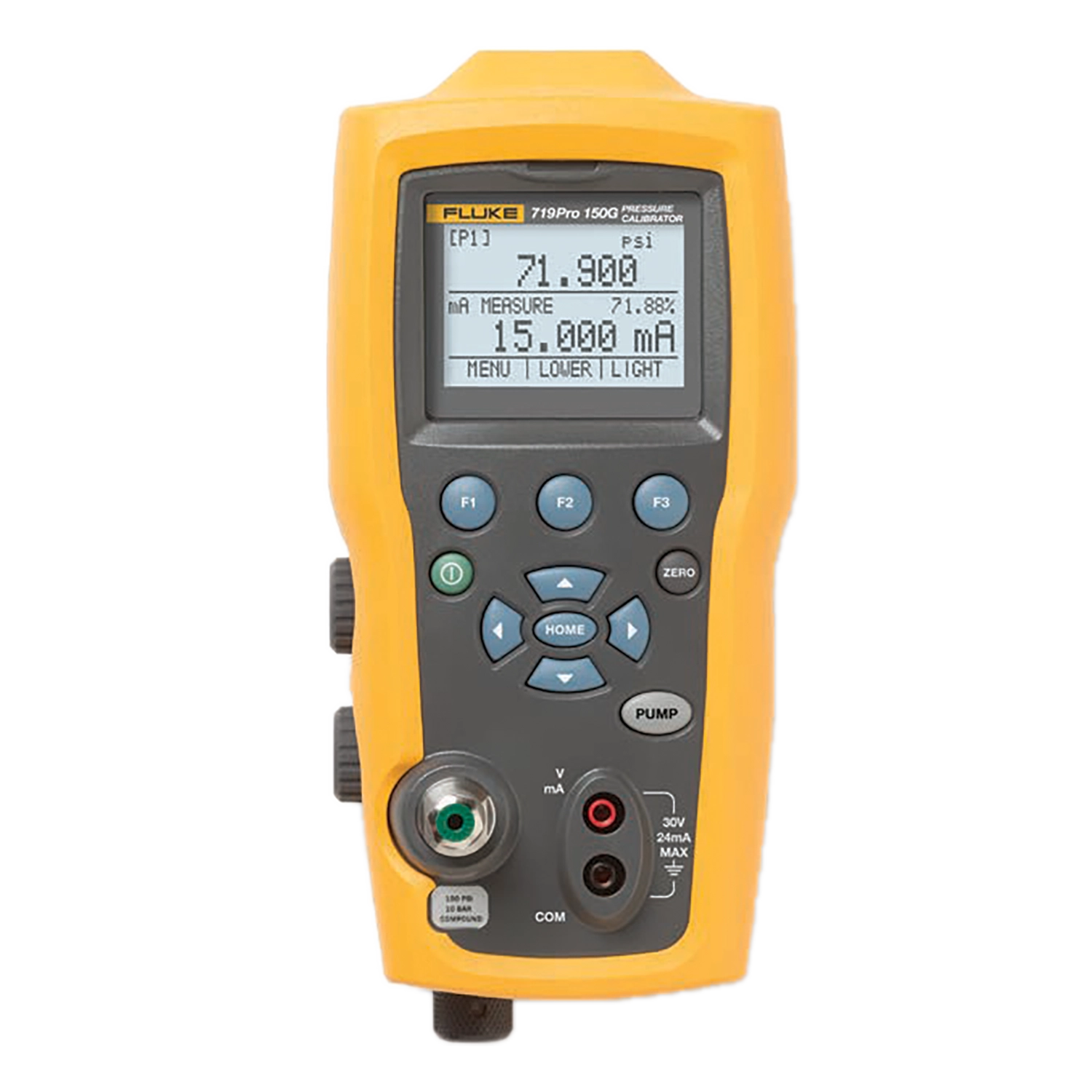

Fluke 719Pro Electric Pressure Calibrator
Sku: FLK-719Pro
Price: R149488,50 incl Vat
Fluke 719Pro Electric Pressure Calibrator
Product Information
Fluke 719Pro Electric Pressure Calibrator sources, simulates, and measures mA signals and more
Fluke 719Pro Electric Pressure Calibrator includes a fully functioning loop calibrator that sources, simulates, and measures mA signals and more making it the ideal test tool for calibrating high accuracy transmitters, pressure switches, and pressure gauges.
Get the ultimate in measurement flexibility with the large backlit screen, which displays three parameters at once:
- Pressure measurement from an internal or external sensor
- Sourced/simulated or measured mA values
- Temperature measured by optional RTD probe
- Unique integrated electric pump for one-handed pressure calibration
- Test pressure switches easily with the easy-to-use switch test function
- Precision pressure adjust vernier for easy and accurate pressure calibration
- Ideal accuracy and performance (0.025%) for reference class transmitter calibration
- 30 psi, 150 psi, and 300 psi pressure ranges
- Programmable pressure calibrator pump limit:
- Eliminates over-pressurization
- Allows the user to program target pressures for pumping
- Extended pressure measurement range with any of 29 750P Pressure Modules
- Pump cleanout ports reduce pump failures from moisture and fluid damage
- Fluid trap included with the unit to mitigate the chance of fluid damage in at-risk applications
- Precision temperature measurement with optional RTD probe
| Measurement | |||
| Fluke-719Pro-30G | Range | -12 to 30 psi / -0.8 to 2 bar | |
| Resolution | 0.001 psi / 0.0001 bar | ||
| Fluke-719Pro-150G | Range | -12 to 150 psi / -0.8 to 10 bar | |
| Resolution | 0.01 psi / 0.001 bar | ||
| Fluke-719Pro-300G | Range | -12 to 300 psi / -0.8 to 20 bar | |
| Resolution | 0.01 psi / 0.001 bar | ||
| Accuracy | ±0.025% of full scale, 6 months ±0.035% of full scale, 1 year |
||
| Temperature effect (all ranges) | Add ±0.002% F.S./°C for temps outside of 15°C to 35°C | ||
| Dry air and non-corrosive gas only No effect on accuracy on all functions from 15°C to 35°C |
|||
| Function | Range | Resolution | Accuracy (1 year) |
| mA DC (simulation and measurement) | 0-24 mA DC | 0.001 mA | ±0.015% of reading ±2 counts |
| 1000 ohm maximum load in mA source, 26 V DC maximum voltage in mA simulate | |||
| Volts DC (measurement only) | 30 V DC | 0.001 V | ±0.015% of reading ±2 counts |
| No AC voltage measurement, do not exceed 30 V DC | |||
| Temperature (measurement only, Pt100 RTD) | -50 to 150°C (-50°F to 302°F) |
0.01°C 0.01°F |
Temperature ±0.1°C (0.2°F) |
| ±0.25°C (±0.45°F) combined uncertainty when using 720 RTD probe (optional accessory) | |||
| Loop power supply | 24 V DC | N/A | 24 mA at 24 V |
| Temperature effect (all functions) | – | – | Add ±0.002% F.S./°C for temps outside of 15°C to 35°C |
| No effect on accuracy on all functions from 15°C to 35°C | |||
| Environmental | |||
| Operating temperature | -10°C to +50°C | ||
| Storage temperature (with batteries) | Per battery manufacturer’s specification within storage specification below | ||
| Storage temperature (without batteries) | -20°C to +60°C | ||
| Power Requirements | |||
| Battery | Eight (8) standard Alkaline AA batteries | ||
| Battery life | 300 pump cycles to 150 psi minimum; 1000 pump cycles to 30 psi; 100 pump cycles to 300 psi minimum | ||
| Physical | |||
| Dimensions (H x W x D) | 24.13 x 11.18 x 7 cm (9.5 x 4.4 x 2.8 in) | ||
| Weight | With holster 1.2 kg (2.5 lb) | ||
| Connections | |||
| Pressure | 1/8 inch female NPT | ||
| Electrical | Standard banana jacks | ||
| RTD | 4 pin miniature circular | ||
| External module | 6 pin miniature circular | ||
| Engineering Units (Configurable) | |||
| psi, bar, mbar, kPa, kgcm2, cmH2O @ 4°C, cmH2O @ 20°C, mH2O @ 4°C, mH2O @ 20°C, inH2O @ 4°C, inH2O @ 20°C, inH2O @ 60°F, mmHg @ 0°C, inHg @ 0°C, ftH2O @ 4°C, ftH2O @ 20°C, ftH2O @ 60°F | |||
Fluke 719Pro 30G
Fluke 719Pro-30G Electric Pressure Calibrator
30 psig
30 psig
Includes:
- Test leads with alligator clips
- Printed user’s manual and user’s manual on CD-ROM in 14 languages
- Fluid trap
- Carrying case
- 1/4 inch NPT to 1/4 inch ISO adapter
- Accessory hose kit with (2) 1/8 inch quick fit adapters and 1 meter of hose
- Traceable Certificate of Calibration
Fluke 719Pro 150G
Fluke 719Pro-150G Electric Pressure Calibrator
150 psig
150 psig
Includes:
- Test leads with alligator clips
- Printed user’s manual and user’s manual on CD-ROM in 14 languages
- Fluid trap
- Carrying case
- 1/4 inch NPT to 1/4 inch ISO adapter
- Accessory hose kit with (2) 1/8 inch quick fit adapters and 1 meter of hose
- Traceable Certificate of Calibration
Fluke 719Pro 300G
Fluke 719Pro-300G Electric Pressure Calibrator
300 psig
300 psig
Includes:
- Test leads with alligator clips
- Printed user’s manual and user’s manual on CD-ROM in 14 languages
- Fluid trap
- Carrying case
- 1/4 inch NPT to 1/4 inch ISO adapter
- Accessory hose kit with (2) 1/8 inch quick fit adapters and 1 meter of hose
- Traceable Certificate of Calibration
Accessories: Fluke 719Pro Electric Pressure Calibrator
- Fluke 720RTD RTD Probe for 721 and 719Pro
- Fluke 720URTDA Universal RTD Adapter for Fluke 721 and 719Pro
- Fluke 71X Hose Kit Accessory
- Fluke 71XTrap Liquid & Dirt Trap for 718 / 719
- Fluke 700ILF In-Line Filter
- Fluke 700PTPK2 Pneumatic Test Pressure Kit
- Fluke 700HTPK2 Hydraulic Test Pressure Kit
- Fluke 700LTP-1 Low-pressure Test Pump
- Fluke 700HTH-1 Hydraulic Test Hose
- Fluke 700TTH5K Premium Transmitter Test Hose Kit
- Fluke 700TTH10K Premium Transmitter Test Hose Kit
