Fluke 87V IMSK Industrial Multimeter Service Combo Kit

Sku: FLK-87V-IMSK

Price: R20458,50 incl Vat

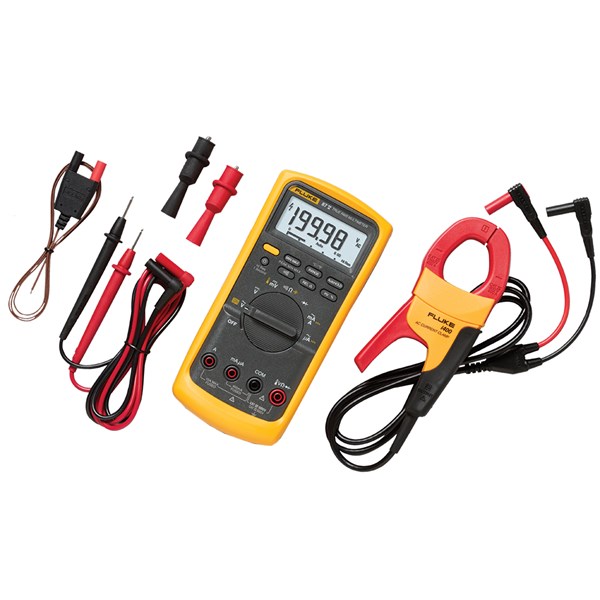

Fluke 87V IMSK Industrial Multimeter Service Combo Kit

Product Information

Fluke 87V Industrial Multimeter Service Kit is built around the Fluke 87V, the most widely used industrial digital multimeter in the world, combined with the i400 AC current clamp. Together they provide the resolution and accuracy to efficiently troubleshoot any electrical system. The kit includes special accessories to make you even more productive on the job and will save over 15% compared to the individually priced items. Plus, you’ll be working with the most trusted tools in the world.

Fluke-87V Multimeter has true-rms accuracy and advanced functionality to give you the results you need

  • True-rms accuracy with manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-Average recording
  • Efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment even in loud, high-energy, and high-altitude locations
  • A low pass filter supports accurate frequency measurements on VFDs and captures intermittents as fast 250 µS
  • Lifetime warranty, backed by a brand you trust.

Fluke-i400 AC 400A Current Clamp turns the 87V into a clamp meter

  • The current clamp provides accurate current measurements up to 400 A ac without breaking electric circuits
  • Allows taking measurements safely with industry standard safety ratings

Select accessories like temperature probe, test leads and alligator clips

  • The 80BK-A DMM Temperature Probe plugs into the 87V’s voltage jacks and allows temperature measurements from -40 °C to 260 °C (-40 °F to 500 °F)
  • TL75 Test Leads and AC175 Alligator Clips complete this versatile kit.

Key safety features

  • Safety rated CAT III 1000 V, CAT IV 600 V meter to get you home safely from the job.
  • Designed to withstand spikes of more than 8000 V. Audible Input Alert warning against wrong use of input jacks.
  • Fluke-87V Multimeter has True-RMS accuracy and advanced functionality to give you the results you need
  • Fluke-i400 AC 400A Current Clamp turns the 87V into a clamp meter
  • Select accessories like temperature probe, test leads and alligator clips included
Specifications
Voltage DC Maximum voltage 1000 V
Accuracy ±(0.05% + 1)
Maximum resolution 10 µV
Voltage AC Maximum voltage 1000 V
Accuracy ±(0.7% + 2) True RMS
AC bandwidth 20 kHz with low pass filter; 3 dB @ 1 kHz
Maximum resolution 0.1 mV
Current DC Maximum amps 10 A (20 A for 30 seconds maximum)
Amps accuracy ±(0.2% + 2)
Maximum resolution 0.01 µA
Current AC Maximum amps 10 A (20 A for 30 seconds maximum)
Amps accuracy ±(1.0% + 2) True RMS
Maximum resolution 0.1 µA
Resistance Maximum resistance 50 MΩ
Accuracy ±(0.2% + 1)
Maximum resolution 0.1 Ω
Capacitance Maximum capacitance 9,999 µF
accuracy ±(1% + 2)
Maximum resolution 0.01 nF
Frequency Maximum frequency 200 kHz
Accuracy ±(0.005% + 1)
Maximum resolution 0.01 Hz
Duty cycle Maximum duty cycle 99.9%
Accuracy ±(0.2% per kHz + 0.1%)
Maximum resolution 0.1%
Temperature measurement –200.0 °C – 1090 °C
–328.0 °F – 1994.0 °F
excluding probe
80 BK temperature probe –40.0 °C – 260 °C
–40.0 °F – 500 °F, 2.2 °C or 2% whichever is greater
Conductance Maximum conductance 60.00 nS
Accuracy ±(1.0% + 10)
Maximum resolution 0.01 nS
Diode Range 3 V
Resolution 1 mV
Accuracy ±(2% + 1)
Duty cycle range Accuracy Within ±(0.2% per kHz + 0.1%)
Environmental Specifications
Operating temperature –20 °C to + 55 °C
Storage temperature –40 °C to + 60 °C
Humidity (without condensation) 0% – 90% (0 °C – 35 °C)
0% – 70% (35 °C – 55 °C)
Operating Altitude 2000 m
Safety Specifications
Overvoltage category EN 61010–1 to 1000 V CAT III, 600V CAT IV
Agency approvals CE, CSA, RCM
Mechanical and General Specifications
Size 201 x 98 x 52 mm (with holster)
Weight 355 g
624 g – with holster
Display Digital 6000 counts updates 4/sec.
19,999 counts in high–resolution mode
Analog 32 segments, updates 40/sec
Frequency 19,999 counts, updates 3/sec at > 10 Hz
Warranty Lifetime
Battery Life Alkaline ~400 hours typical, without backlight
Shock 1 Meter drop per IEC 61010–1:2001
Vibration Per MIL–PRF–28800 for a Class 2 instrument

Specifications: Fluke i400 AC Current Clamp

Specifications
Nominal current range 400 A
Continuous current range 1 A – 400 A
Maximum non-destructive current 1000 A
Lowest measurable current 1 A
Basic accuracy 2% + 0.06 A
(45-400 Hz)
(% reading + floorspec)
Useable frequency 5 Hz – 20 kHz
Output level(s) 1 mA/A
Safety Specifications
Safety CAT IV 600 V, CAT III, 1000 V
Maximum voltage 1000 V AC rms from earth to ground, in compliance with EN61010
Mechanical and General Specifications
Warranty 1 year
Maximum conductor diameter 32 mm (1.25 in)
Maximum conductor size (busbar) 750 MCM
Output cable length 1.5 m (59 in)
Shrouded banana plugs Yes

Models: Fluke 87V IMSK Industrial Multimeter Service Combo Kit

FLUKE-87V/IMSK
​Fluke 87V IMSK Industrial Multimeter Service Kit

Includes:

  • Fluke 87V Industrial Multimeter
  • Fluke i400 400 A AC Current Clamp
  • 80BK-A DMM Temperature Probe
  • TL75 Hard Point Test Lead Set
  • AC175 Threaded Alligator Clip Set
