Fluke T5-1000 Voltage. Continuity and Current Tester
Sku: FLK-T5-1000
Price: R7693,50 incl Vat

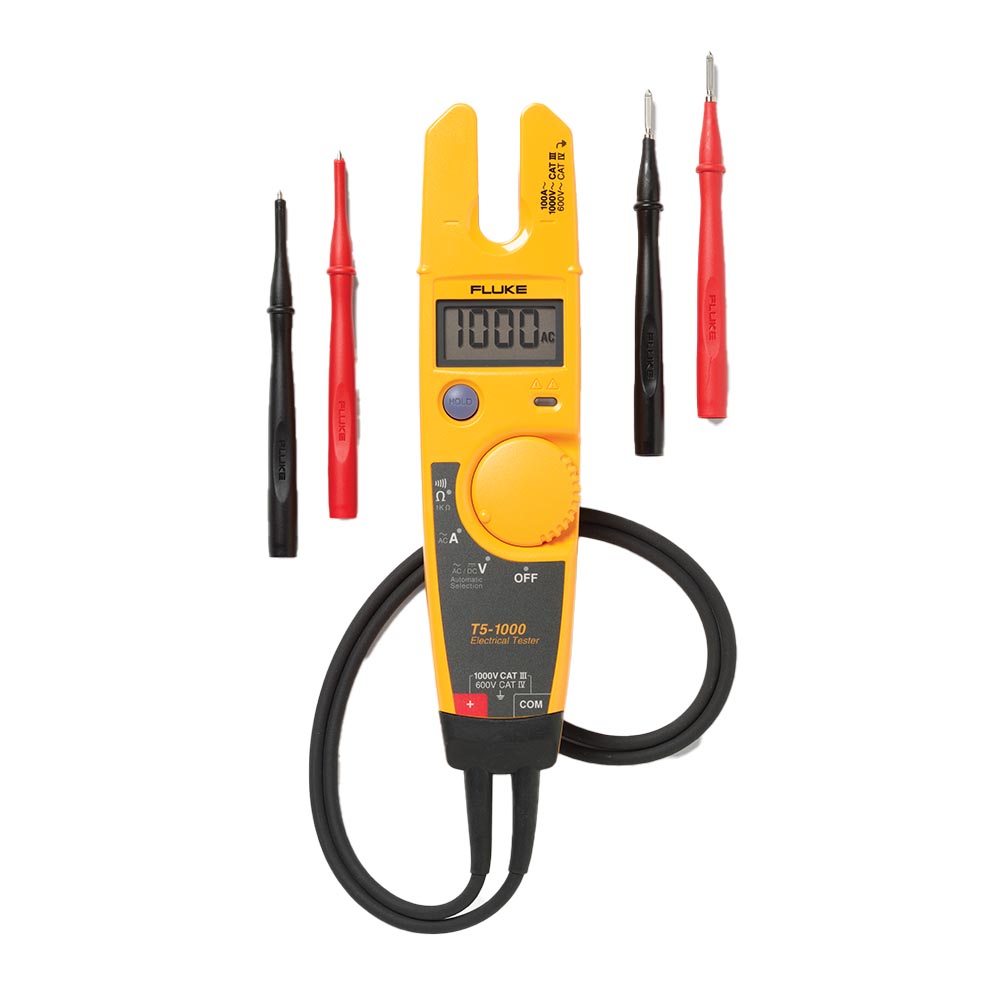

Fluke T5-1000 Voltage, Continuity and Current Tester
Product Information
The Fluke T5-1000 Tester Measures current up to 100 A without breaking the circuit with OpenJaw™ design. The T5-1000 Electrical Tester is a versatile troubleshooting tool to carry to every job site. Use it to check voltage, continuity, and current – all with one compact tool.
How to use the T5-1000
Just select volts, ohms, or current and the tester does the rest. The electrical tester auto-selects between AC and DC voltage up to 1000 V.

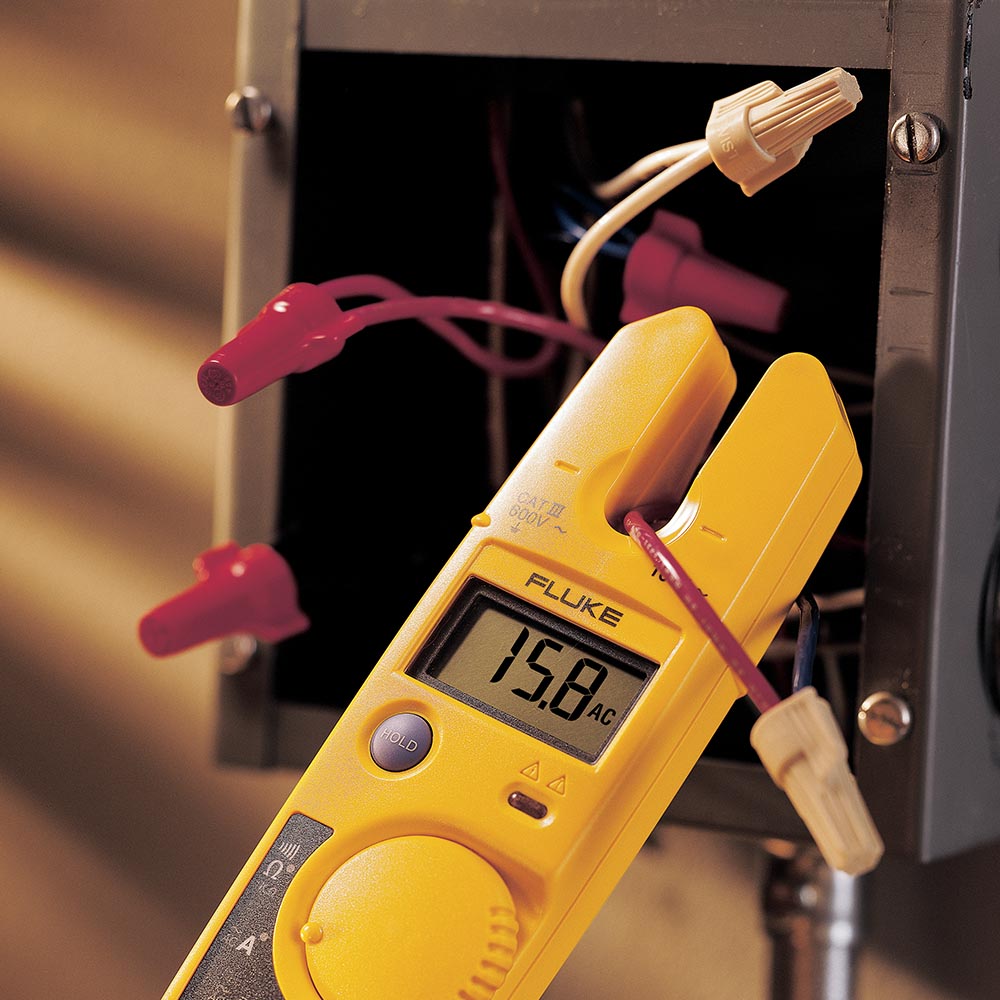

Plus, the OpenJaw™ design allows for fast and easy current measurements without needing to make metallic contact, just slide a wire into the open fork. The continuity beeper offers a quick go/no-go tests, resistance measurements to 1000 Ω.

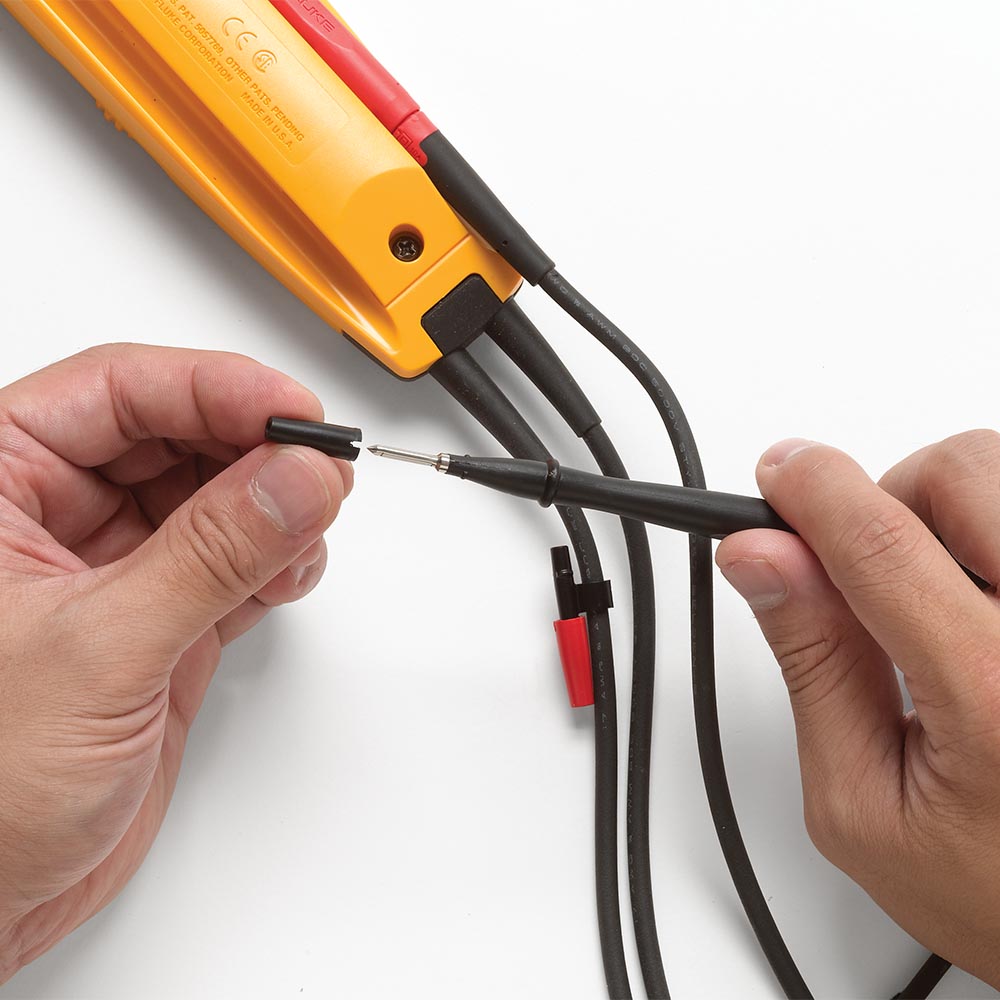

The electrical tester comes with detachable Slim Reach probe tips so you can easily work in tight spaces. Or hand free work when you use the test lead holder to make the meter an “extended handle” for the probe.
Fluke T5-1000 vs T6-1000
The T5-1000 uses the OpenJaw™ design to measure current without metallic contact, just slide the wire in the open fork and the T5 will do the rest. It also measures voltage and continuity with the test leads. The T6-1000 (https://www.fluke.com/en-us/product/electrical-testing/basic-testers/fluke-t6-1000) is designed to use FieldSense™ technology to display both current and voltage simultaneously.
- OpenJaw™ design: measure current without breaking the circuit
- Tester automatically selects AC or DC voltage, up to 1000 V
- Work in tight spaces with detachable Slim Reach probe tips
Specifications: Fluke T5-1000 Voltage, Continuity and Current Tester
| Specifications | ||
| Jaw opening | 12.9 mm (0.5 in) | |
| Max wire size | 1/0 THHN Cable | |
| Current range AC rms | 0 to 100.0 A | |
| Accuracy AC current (50/60 Hz) | 3% ± 3 counts | |
| AC response | Averaging | |
| Voltage range AC/DC | 0 to 1000 V | |
| Voltage accuracy | ||
| AC | 1.5% ± 2 counts | |
| DC | 1% ± 1 count | |
| Resistance range | 0 to 1000 Ω | |
| Continuity beeper threshold | On at < 25 Ω, off at > 400 Ω | |
| Volts indicator LED threshold | Guaranteed on by 30 V AC | |
| Environmental Specifications | ||
| Operating temperature | -10°C to 50°C | |
| Storage temperature | -30°C to 60°C | |
| Humidity (without condensation) | ||
| 0% to 95% (5°C to 30°C); | ||
| 0% to 75% (30°C to 40°C); | ||
| 0% to 45% (40°C to 50°C) | ||
| Dust/water resistance | Yes | |
| Operating altitude | 2000 meters max | |
| Temperature coefficient | 0.1 x (specified accuracy)/°C (< 18°C or> 28°C) | |
| Safety Specifications | ||
| Measurement Category | IEC 61010-2-032, IEC61010-2-033: CAT IV 600 V / CAT III 1000 V, 100 A ac | |
| Agency approvals | CSA, TUV | |
| Maximum voltage | 1000 V between any terminal and earth ground | |
| Mechanical and General Specifications | ||
| Size | 30.5 x 51 x 203 mm | |
| Weight | 300 g | |
| Warranty | Two-years | |
| Battery life | 200 hour zinc chloride, 400 hour alkaline | |
| Battery type | 2 x AA | |
| Low battery indicator | Yes | |
| Current sensor opening | 12.9 mm | |
Fluke T5-1000 Voltage, Continuity and Current Tester
Includes:
- 4 mm detachable probes
- Instruction sheet
Compatible accessories: Fluke T5-1000 Voltage, Continuity and Current Tester
- Fluke C101 Hard Case
- Fluke C33 Soft Carrying Case
- Fluke C520A Leather Tester Case
- Fluke H5 Electrical Tester Holster
- Fluke T5 Tester Accessory Starter Kit
- Fluke C37XT Protective EVA Hard Tool Case
- Fluke AC220 SureGrip™ Alligator Clips
- Fluke AC285 SureGrip™ Alligator Clips
- Fluke TP1 Slim Reach Test Probes
- Fluke TP2 Slim Reach Test Probes
- Fluke TP4 Slim Reach Test Probes
- Fluke T5 RLS Replacement Test Lead Set for T5-600 and T5-1000
- Fluke TLK291 Fused Test Probe Set
