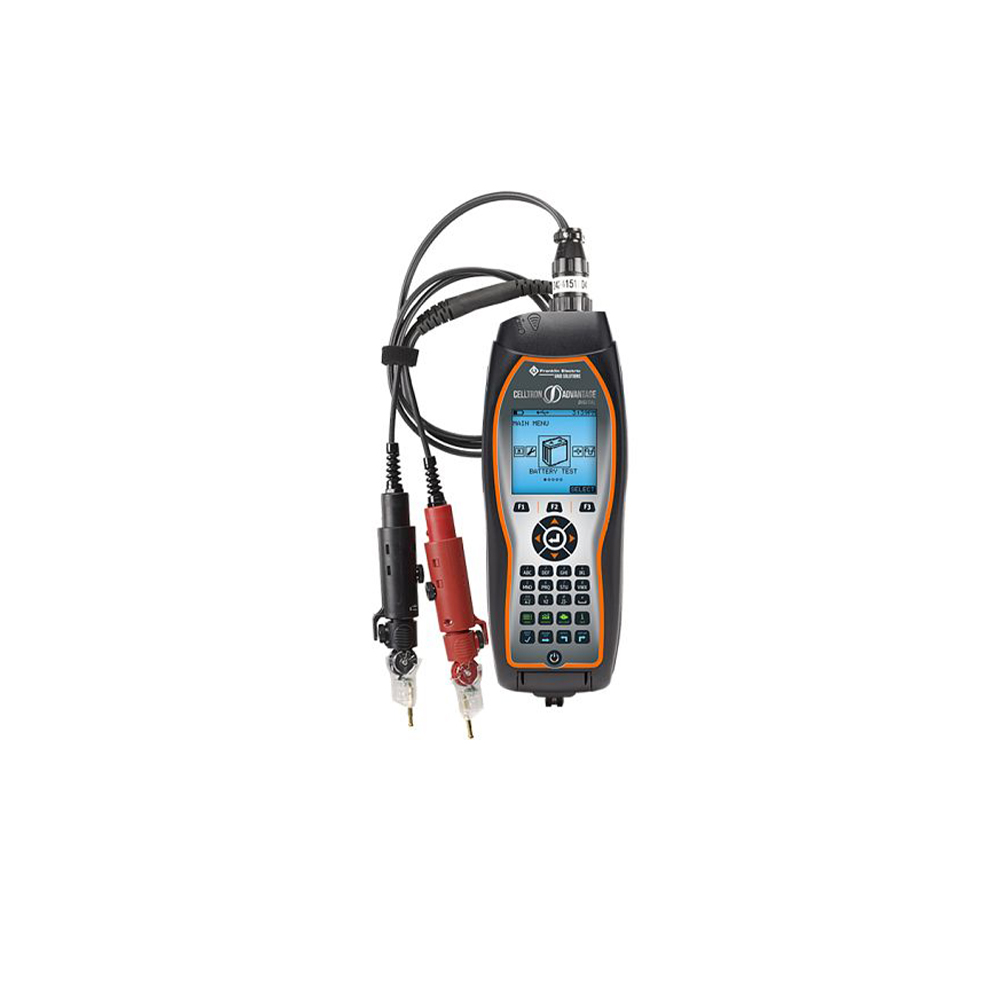

Franklin Electric Celltron Advantage Digital

Sku: FRA-CAD

Fast, user-friendly, premium handheld tester for measuring battery conductance, voltage, temperature and strap resistance in high-noise environments for a complete battery state-of-health analysis

Add to Quote

Product Information

The CELLTRONTM Advantage Digital is a fast, user-friendly, premium handheld tester for measuring battery conductance, voltage, temperature and strap resistance in high-noise environments for a complete battery state-of-health analysis. With the capability to test Valve Regulated Lead Acid (VRLA), Vented Lead Acid (VLA), and Nickle Cadmium (Ni-Cd) batteries, the CELLTRONTM Advantage Digital can measure battery voltage down to one (1) volt as well as measure inter-cell and terminal connection resistance.

  • The conductance-based diagnostics provided by the CELLTRONTM Advantage Digital delivers a highly accurate and reliable predictor of the battery’s end of life.

  • Built-in Wi-fi enables tester data to quickly and wirelessly be transmitted to and from the tester with no additional cards, cords, or hardware required.

  • The powerful dual-microprocessor architecture allows the tester to stand up to the high noise environments caused by UPS/battery systems and constant power supply switching (notorious for causing testers to fail).

  • Dual microprocessor signal filtering, integrated IR temperature measurement, built-in Wi-fi, USB communication port, interchangeable light-up probe and clamp testing interfaces, and a 16-hour rechargeable on-board battery pack.

  • Cleaner, more precise battery state-of-health measurements are achieved through new “Edge Rejection” technology which filters out anomalies that can corrupt battery signal readings at both the beginning and end of each sample signal.

  • A fast-acting protection relay responds in milliseconds when a signal input in excess of 25 volts is introduced through the testing probes, providing instant protection to both the device and the user.

  • The web-based UNITETM software is a sophisticated database with advanced data visualization tools that accommodates Franklin’s portfolio of industrial IoT devices. It enables users to wirelessly pre-program site string details, export the details to the tester, and upload battery test for analysis and reporting.

  • Integrated lighted test interfaces allows the user to see battery post connections clearly in dark conditions.

  • Tests individual Lead-Acid or Nickel-Cadmium cells or Monoblocs (up to 16Volts) in any common configuration, approximately 10-6000Ah.

Specifications

Voltage Range

  • 0.8 – 23.5 Volts DC

Conductance Range

  • 100 – 19,990 Siemens

Test Data Storage

  • 50 string locations of 240 test results
  • Stored internally
  • Unlimited transfer to USB drive

Accuracy

  • +/-2% across test range, voltage & conductance

Voltmeter Resolution

  • 5mV

User Programmable Functions

  • Preset values for over 250 battery types
  • Low voltage alarm setting
  • Low conductance warning
  • Low conductance failure
  • Test mode (pushbutton/auto start)

Cable Options

  • Dual contact clamps
  • Dual contact probes
  • Custom cables by quotation

Power Requirements

  • 7.2V, 2300mAh, NiMH
  • Internal swappable battery & charger

LCD Display

  • 2.97 in x 2.81 in (75.4 mm x 71.3mm)
  • 128 x 128 pixels
  • 40 degree viewing angle
  • LED backlight

Keypad

  • Alpha-numeric
  • Stainless-steel dome
  • Polycarbonate overlay
  • 1,000,000 actuations

Data Transfer

  • Wifi
  • USB 2.0 Flash Drive (Type A)
  • USB 2.0 PC Interface (Type B)
  • Infra-red
  • Half-duplex IrDA protocol for optional printer

Environmental Operating Range

  • 0 to +104°F (0 to +40°C)
  • 95% relative humidity
  • Non-condensing

Storage Temperature

  • -4 to 180°F (-20 to 82°C)

Over Voltage Protection

  • Auto-reset disconnect
  • Reverse polarity protected

Housing Material

  • Acid-resistant ABS plastic
  • Santoprene™ overmold

Housing Material

  • 11in x 4in x 3in (279mm x 105mm x 80mm)

Tester Weight

  • 2.6 lb (1 Kg)

Languages

  • English
  • Spanish
  • German
  • Polish
  • Portuguese
  • Dutch
  • Russian
  • French

MODELS

CADD-5000 KIT: Basic CELLTRONTM Advantage Digital Battery Tester Kit

Included with Tester:

  • Belt loop

  • Battery pack

  • Universal charger

  • Backpack

  • UNITETM web-based software access

  • 1 meter USB cable

CADD-5500 KIT: Complete CELLTRONTM Advantage Digital Battery Testing Kit

  • CELLTRONTM Advantage Digital

  • Belt loop

  • Battery pack (2)

  • Universal charger

  • 1 meter USB cable

  • Backpack

  • UNITETM web-based software access

  • 4' interchangeable cable

  • 8' probe cable

  •  Probe set

  • Probe tip replacements

  • Clamp set

  • Waffle replacements

  • Probe extender for 8' probe cables • Probe extender for 4'probe cables

CADD-5200 KIT: Enhanced CELLTRONTM Advantage Digital Battery Testing Kit

  1. Included in the Kit

    • CELLTRONTM Advantage Digital •

    • Belt loop •

    • Battery pack (2) •

    • Universal charger •

    • 1 meter USB cable

    • Backpack

    • UNITETM web-based software access

    • 4' interchangeable cable

    • Probe set

    • Probe tip replacements Clamp set

    • Waffle replacements

ACCESSORIES & REPLACEMENT PARTS

RED LIGHTED PROBE

Model Description
CA093R Red 6” lighted probe
  • 6” probe with rotating head and ½” tip for instant contact
  • Designed with an internal LED to light those hard to see battery posts in dark places
  • Incorporates a quick connect/disconnect radio frequency BNC connector for easy removal.
  • Replaceable gold-plated over Duralloy® dual probe tips



BLACK LIGHTED PROBE



Model Description
CA093B Black 6” lighted probe
  • 6” probe with rotating head and ½” tip for instant contact
  • Designed with an internal LED to light those hard to see battery posts in dark places
  • Incorporates a quick connect/disconnect radio frequency BNC connector for easy removal.
  • Replaceable gold-plated over Duralloy® dual probe tips



RED & BLACK LIGHTED PROBE



Model Description
CA093 (1) red and (1) black 6” lighted probe
  • 6” probe with rotating head and ½” tip for instant contact
  • Designed with an internal LED to light those hard to see battery posts in dark places
  • Incorporates a quick connect/disconnect radio frequency BNC connector for easy removal.
  • Replaceable gold-plated over Duralloy® dual probe tips



REPLACEMENT PROBE TIPS



Model Description
CA069 Replacement probe tips (4 probe tips, 2 probe caps)
CA031 Replacement probe waffle tips (4 probe tips)
  • Replaceable gold-plated over Duralloy® dual probe tips



RED LIGHTED PIRAHNA CLAMP



Model Description
CA092R Red 6.5” piranha lighted clamp
  • 2” opening to attach to large battery terminals
  • Designed with an internal LED to light those hard to see battery posts in dark places
  • Incorporates a quick connect/disconnect radio frequency BNC connector for easy removal



BLACK LIGHTED PIRAHNA CLAMP



Model Description
CA092B Black 6.5” piranha lighted clamp
  • 2” opening to attach to large battery terminals
  • Designed with an internal LED to light those hard to see battery posts in dark places
  • Incorporates a quick connect/disconnect radio frequency BNC connector for easy removal



RED & BLACK LIGHTED PIRAHNA CLAMPS



Model Description
CA092 (1) red and (1) black 6.5” piranha lighted clamps
  • 2” opening to attach to large battery terminals
  • Designed with an internal LED to light those hard to see battery posts in dark places
  • Incorporates a quick connect/disconnect radio frequency BNC connector for easy removal

INTERCHANGEABLE CABLES

Model Description
CA026 4’ interchangeable CELLTRON Advantage cable
  • Flex strain relief and spread of 24” with “Y” junction
  • Incorporates a quick connect/disconnect radio frequency BNC connector
    for easy probe or clamp removal
  • Compatible with CA092 clamps and CA093 probes

30" PROBE EXTENDERS

Model Description
CA034 30” probe extenders
  • Soft rubber handles
  • Utilized in hard-to-reach areas such as UPS cabinets
  • Weight: 2 lbs

RECHARGEABLE BATTERY PACK

Model Description
CA090 CELLTRON Advantage 7.2V NiMH rechargeable battery pack



DESKTOP RAPID CHARGER



Model Description
CA096 CELLTRON Advantage desktop rapid battery charger
  • For use with the CELLTRON Advantage battery pack CA090 with rated voltage of 7.2VDC
  • Rapid charge to 80% of rated voltage in 1 to 2.5 hours, trickle charge the remaining voltage
  • Automatically end charging with negative delta voltage greater than 50mVDC
  • AC power adapter included with an input of 120-240VAC 50-60HZ and output of 12VDC 2.5Amp

UNIVERSAL IN-UNIT BATTERY CHARGER

Model Description
CA091 CELLTRON Advantage universal in-unit battery charger
  • Input: 100-240V 60Hz/50Hz 14W
  • Output: 7.2V, 700mA 5.04VA

39" USB A/B CABLE

Model Description
CA049 CELLTRON Advantage 39” USB A/B cable
  • For USB 2.0 communication between a PC and the CELLTRON Advantage

4GB USB FLASH DRIVE

Model Description
CA089 4GB USB 2.0 drive for use with CELLTRON Advantage
  • Export test data from the tester on to the USB drive or import tester
    configuration from the USB drive to the tester

THERMAL IR / RS232 PRINTER

Model Description
CA087 Thermal IR / RS232 printer for use with CELLTRON Advantage
  • Power adapter and 4 NMH rechargable AA batteries included
  • Weight: 1 lb
  • Dimensions: 2.25"H X 75"L X 3.25"W

PRINTER POWER ADAPTER / CHARGER

Model Description
A090 Power adapter / charger for CA087 thermal IR / RS232 printer



THERMAL PRINTER PAPER



Model Description
A095 6 pack thermal printer paper rolls



DIGITAL AMP CLAMP/METER



Model Description
C040 Ampere Clamp
  • 40A DC/AC range
  • .90" (23mm) diameter jaw
  • One touch zero button
  • 400V DC/AC range
  • Requires 2 AA batteries
  • 600V overload protection for Ohm measurement
  • Weight: 1.5 lbs
  • Dimensions 10"L X 2"H X 4"W

CUSTOM BACKPACK

Model Description
CA100 Celltron-Branded Ballistic Nylon Backpack
  • Customized inserts fitted for the Celltron Advantage and Ultra handheld testers as well as accessories
  • Backpack only, tester and accessories sold separately
