Product Information

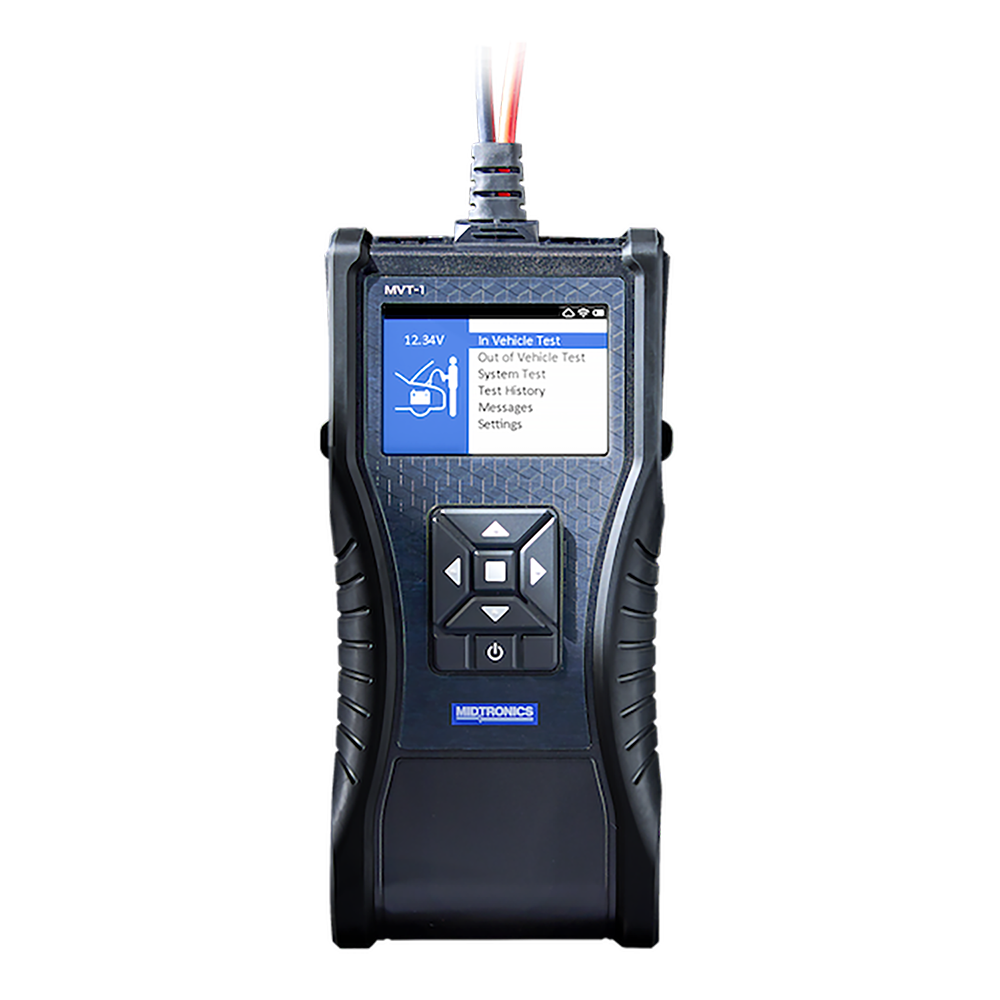

Midtronics MVT Battery & Electrical System Tester
Powered by MDX-AI, the MVT handheld battery tester showcases diagnostic capabilities never thought possible in handheld battery testing. MVT makes battery testing lightning fast while delivering professional accuracy.
Battery Management Processes
Midtronics products are designed to meet a variety of battery and electrical system service requirements; however, certain features on individual products may make them a better fit for your unique service applications. This product is particularly well-suited for these battery management processes:
|
PRIMARY USES |
SECONDARY USES |
|||
 |
 |
 |
 |
 |
|
Preventative Maintenance |
Vehicle Arrival Inspection |
Pre-Delivery Inspection |
Warranty Management |
Service Diagnostics |
KEY PRODUCT DIFFERENTIATOR
Powered by MDX•AI Diagnostic Technology
The MVT powered by MDX-AI truly is like nothing else:
- Allows accurate battery testing with little to no user input, removing barriers to proactively diagnosing batteries
- Provides instant decisions in preventative maintenance testing, reducing time spent testing
- Enables accurate battery testing despite system noise, enabling battery tests in even the trickiest situations
- Accurately diagnose discharged batteries in-vehicle, without having to charge them
- Get instant test results with no user input on most quick lane testing scenarios
- Accurately diagnose batteries when you can’t see the CCA rating
- Accurately diagnose batteries when faced with vehicle system noise interruptions
MVT SELECTED FEATURES
- 3.5” Color Display
- An intuitive user interface
- Over-the-air data transmission and updatability
- E-mail test results directly from the tool
- Rechargeable Internal Battery
- Field-Replaceable Cables
- Optional integrated printer
SUPPORTED BATTERY TYPES
- 6- AND 12-VOLT AUTOMOTIVE BATTERIES
- FLOODED LEAD-ACID
- AGM SPIRAL
- GEL
- AGM FLAT
- ENHANCED FLOODED (EFB)
- 12- AND 24-VOLT CHARGING SYSTEM
BATTERY RATINGS
- CCA
- CA
- MCA
- DIN
- SAE
- IEC
- EN
- EN2
- JIS
DIAGNOSTIC TECHNOLOGY
- MDX-AI
COMMUNICATION
- WI-FI COMMUNICATION
- 4 GHZ 802.11 B, G, N
POWER REQUIREMENTS
- RECHARGEABLE INTERNAL BATTERY
- AUTOMOTIVE
- POWER SPORTS
- MARINE
- LAWN & GARDEN
- HEAVY DUTY GROUP 31
- COMMERCIAL 4D/8D
