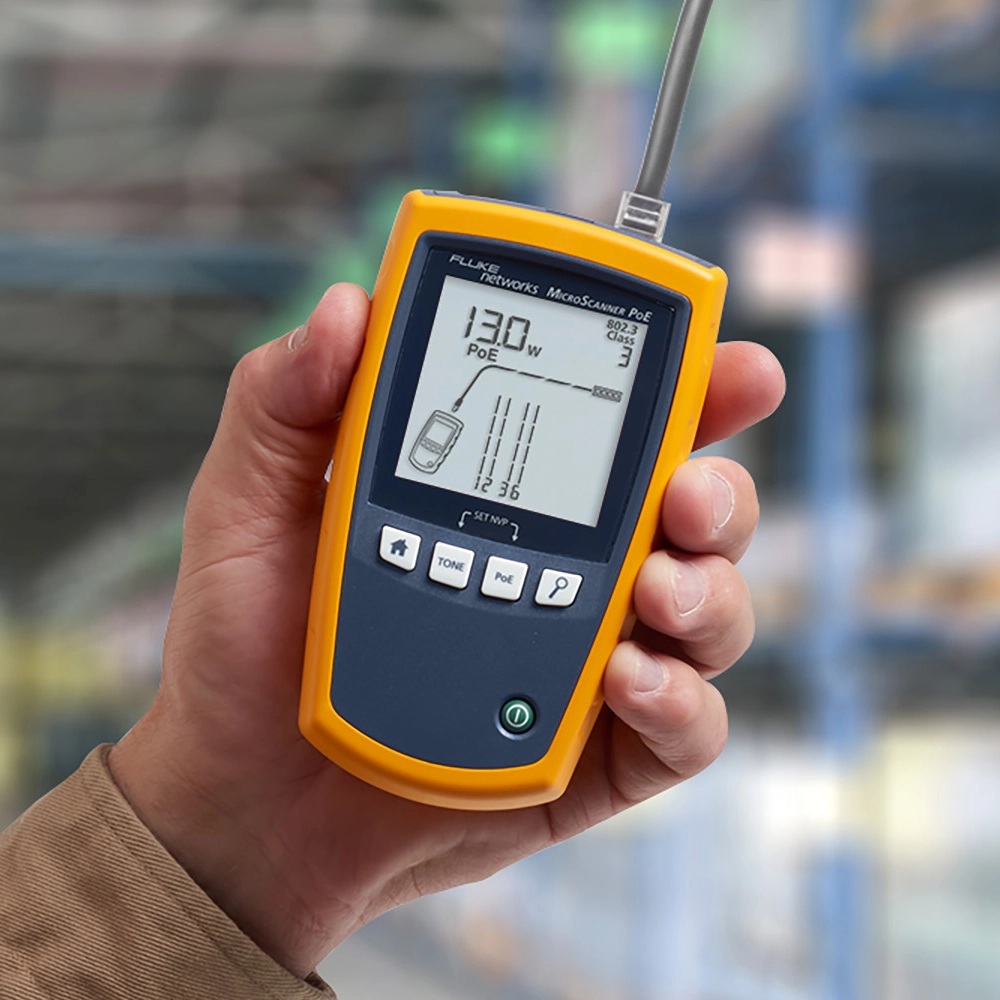

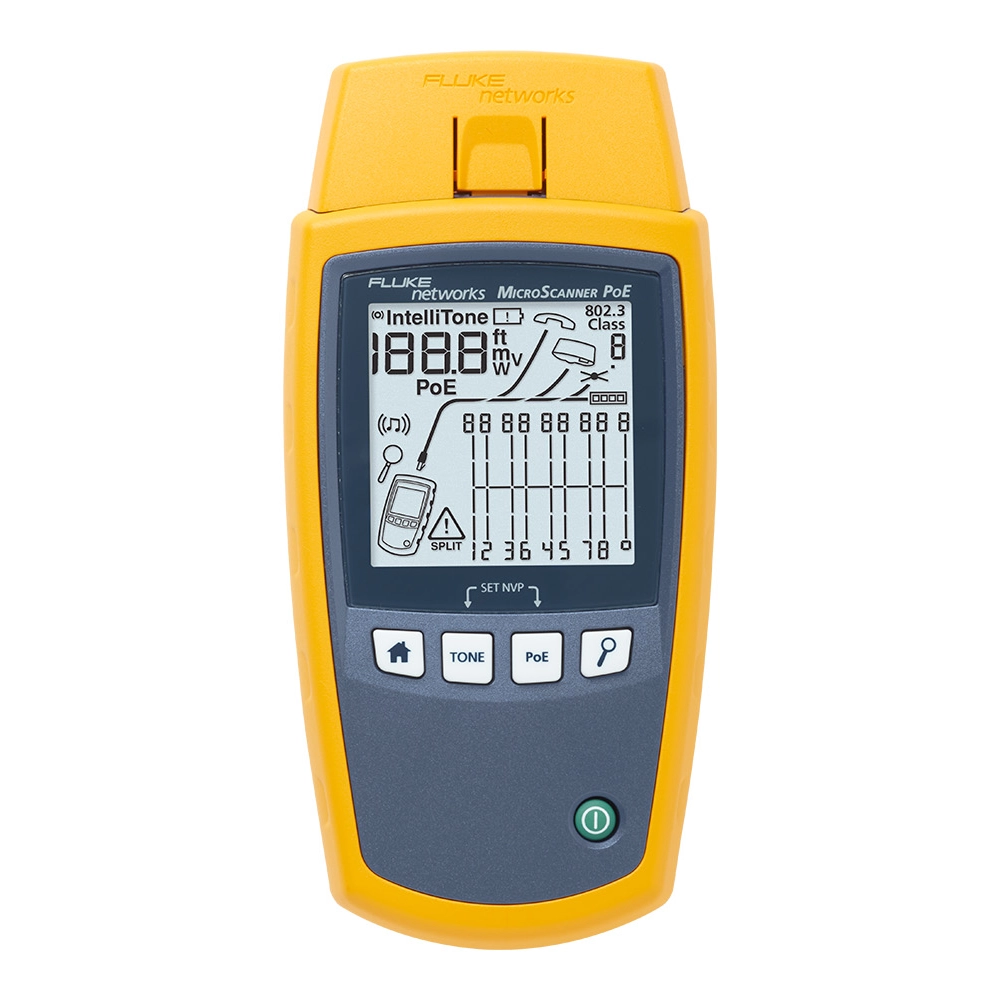

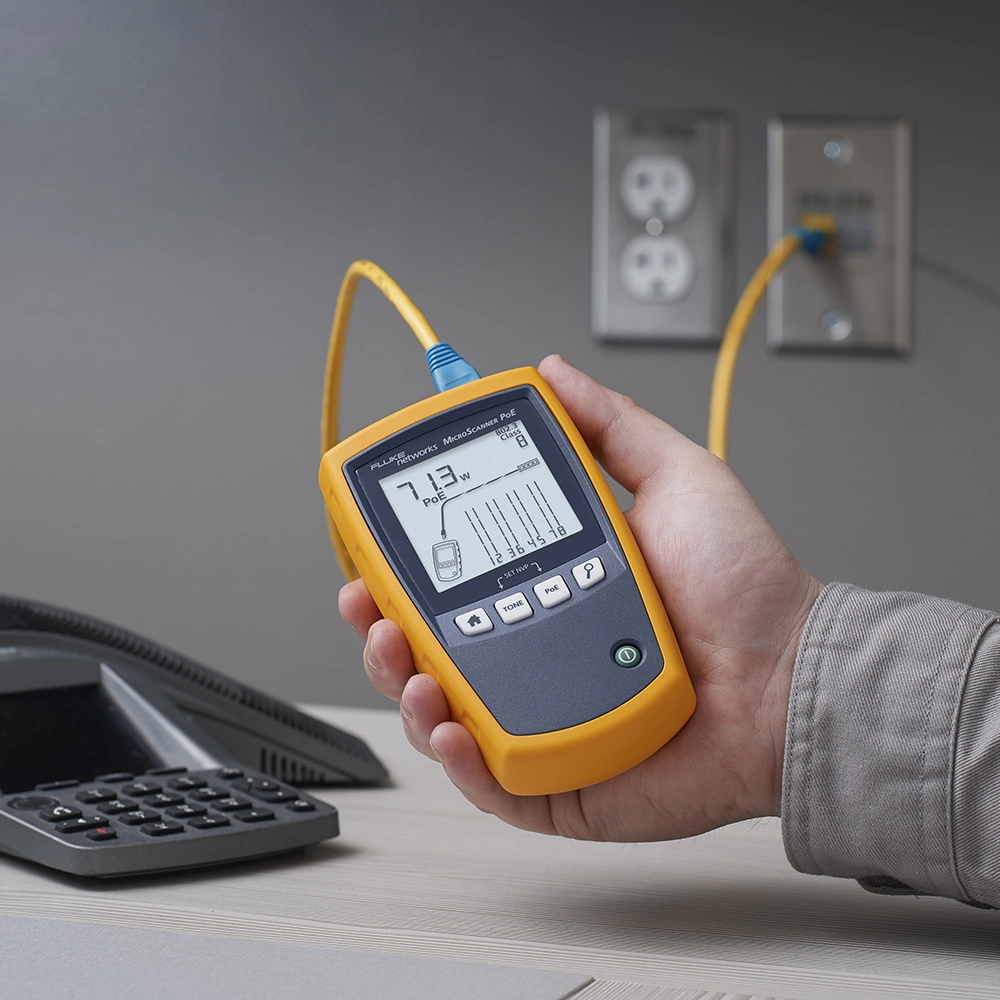

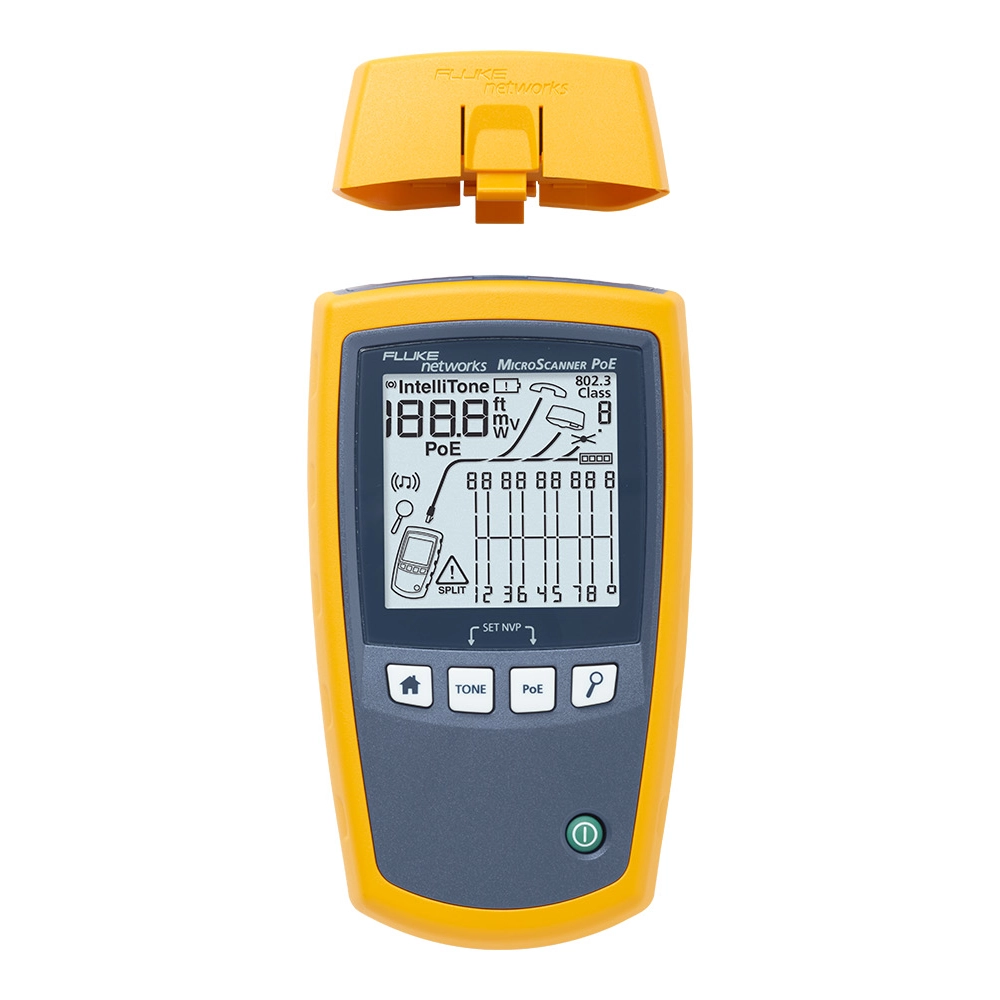

Fluke Networks MicroScanner™ Cable Verifier Series
Sku: FNET-MS2-Series
The Fluke Networks MicroScanner™ Series is a professional network cable tester for fast verification and troubleshooting of copper cabling. Quickly identify wiremap faults, measure cable length, locate faults and verify Ethernet and PoE connectivity.
Product Information
Streamlined verification testing
The MicroScannerTM Cable Verifier series is a network cable tester that simplifies the testing of voice, data, and video cables. It starts by taking results from what were four different test modes and displaying them all at once – graphical wiremap, pair lengths, distance to fault, cable ID, and far-end device. What’s more, it supports virtually any type of low-voltage cable testing with no need for awkward adapters. The end result is reduced test time and technician error. That makes high-quality installations more efficient than ever.
Rule out service problems fast
Today’s communications technicians have many more problems to deal with than just cabling. They have to rule out a whole host of potential cable and service issues before determining the cause of a connection problem. The MicroScanner Cable Verifier series is equipped to answer these questions and reduce troubleshooting time. Is there telephone voltage? What’s the polarity? Is there an Ethernet switch at the far end? Is PoE available? If PoE is available, is it enough to run my device? The MicroScanner Series acknowledges this, giving technicians the vision to verify today’s most common voice, data, and video services. That means faster, more comprehensive troubleshooting.”
Comparison Chart
| Feature | MicroScanner2 | MicroScanner PoE |
|---|---|---|
| Twisted Pair (RJ-11, RJ-45) | ||
| Wiremap | ✓ | ✓ |
| Length / Distance to Fault | ✓ | ✓ |
| Coaxial | ||
| Length / Distance to Fault | ✓ | |
| Service Identification | ||
| Reports Maximum Power Class | ✓ | |
| 10/100/1000BASE-T | ✓ | ✓ |
| 2.5GBASE-T, 5GBASE-T, 10GBASE-T | ✓ | |
| Power Over Ethernet | 802.3af | 802.3af, 802.3at, 802.3bt |
| Analog and Digital Toning | ✓ | ✓ |
| Optional Remote Identifiers |
The technician’s tool for installing and troubleshooting Ethernet devices.
MicroScanner PoE Capabilities:
- Quickly determine if a problem is caused by a bad or unconnected cable, insufficient power, or a Powered Device (PD).
- Ethernet Alliance Certified to IEEE-802.3™ PoE standards for reliable multivendor interoperability
- Information for the Network Engineer to investigate potential switch configuration or malfunctions.
- PoE Switch Verification – Determine if a switch port can provide enough power by reporting PoE class (0-8).
- Powered Pairs – Graphically identifies powered pairs. Including Dual Signature where the switch port delivers power on 2 or 4 pairs (802.3bt or PoE ++) View More >
Specifications apply at 23 °C (73 °F), unless otherwise noted.
Environmental Specifications
| Operating temperature | 32 °F to 113 °F (0 °C to 45 °C) |
| Storage temperature | -4 °F to +140 °F (-20 °C to +60 °C) |
| Operating relative humidity (% RH without condensation) | 90 % (50 °F to 95 °F 10 °C to 35 °C) 75 % (95 °F to 113 °F 35 °C to 45 °C) |
| Shock and Vibration | Random, 2 g, 5 Hz-500 Hz (Class 2) 1 m drop test with and without wiremap adapter attached |
| Safety | IEC 61010-1 3rd Edition |
| Altitude | 4,000 m; Storage: 12,000 m |
| EMC | IEC 61326- |
General Specification
| Test connectors | Shielded 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs. MicroScanner2: F-connector for coaxial cable. |
| Power | Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries Battery life: 20 hours of typical use Other compatible battery types: 2 AA photo lithium, NIMH, NICAD |
| Dimensions and weight (with batteries installed and wiremap adapter attached) | 3 in x 6.4in x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm) MicroScanner2: 10.6 oz (300 g) MicroScanner PoE: 10.6 oz (300 g) |
| Display | Monochrome LCD with backlight |
Test Mode
| Cable test | Measures length, verifies wiremap, identifies remote ID locators, and detects Ethernet ports. MicroScanner PoE also shows HIGH Ω when the resistance of the cable is more than 12.5 Ω. Displays results on one screen. |
| Tone | Generates Intellitone™ and normal analog toning signals |
| PoE | MicroScanner2: Solicits and detects the presence of 802.3af compatible PoE (Power over Ethernet) devices MicroScanner PoE: Solicits and detects the presence of 802.3af, at, bt, and UPOE (Cisco’s Universal Power over Ethernet) compatible PoE devices |
Performance Specifications
| Cable types tested | Twisted pair: UTP, FTP, SSTP Coaxial (MicroScanner2): 75 Ω, 50 Ω, 93 Ω |
| Length test | Range: 460 m (1500 ft) Resolution: 0.3 m (1 ft) Accuracy: 4% ± 0.3 m (1 ft) |
| Wiremap test | Detects single-wire faults, shorts, miswires, split pairs, and up to seven far-end adapter IDs. The wiremap is drawn with proportional length to visually indicate the approximate location of faults. |
| Ethernet port detection | MicroScanner2: Detects the advertised speed of 802.3 Ethernet ports with speeds of 10 Mbps, 100 Mbps, and 1 Gbps. MicroScanner PoE: Detects the advertised speed of 802.3 Ethernet ports with speeds of 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, and 10 Gbps. |
| Tone generator | Supports toning and cable mapping with a Fluke Networks digital IntelliTone™ probe. Generates four tones compatible with typical analog probes. SmartTone™ feature gives positive identification of cables in bundles when using an IntelliTone or an analog probe. |
| MS2-100 | MicroScanner2 Cable Verifier. Includes MicroScanner2 Cable Verifier with main wiremap adapter, multi-language Getting Started Guide, batteries, and Fluke Networks carry pouch. See Photo |
| MS-POE | Microscanner PoE with carrying case |
| MS2-100-IE | MicroScanner™ 2 Industrial Ethernet Basic Kit with Duffle Bag, Multi-Connector Adapter, Cat 6A patch cord, RJ45 male to RJ45 female patch cord , RJ45/M12X patch cord, RJ45/M12D patch cord, RJ45/M8D patch cord for testing of M12X, M12D, M8D terminated cables. See Photo |
| MS-POE-IE | MicroScanner™ PoE Industrial Ethernet Basic Kit with Duffle Bag, Multi-Connector Adapter, Cat 6A patch cord, RJ45 male to RJ45 female patch cord , RJ45/M12X patch cord, RJ45/M12D patch cord, RJ45/M8D patch cord for testing of M12X, M12D, M8D terminated cables See Photo |
| MS-POE-IE-KIT | MicroScanner™ PoE Industrial Ethernet Professional Kit with IntelliTone Pro 200 Probe, Duffle Bag, Multi-Connector Adapter, Cat 6A patch cord, RJ45 male to RJ45 female patch cord , RJ45/M12X patch cord, RJ45/M12D patch cord, RJ45/M8D patch cord for testing of M12X, M12D, M8D terminated cables See Photo |
For more information, please click here
Manuals:
- Declaration of Conformity
- MicroScanner Series Users Manual
- MicroScanner Series Getting Started Guide
- Statement of Memory Volatility for MicroScanner Cable Verifiers
- MicroScanner Adapter Set Quick Reference Guide
Datasheets
