It looks like one of our advanced meters will be right for you!
| Basic features | ||
| Counts | 50000 | 50000 |
| True-rms readings | ac+dc | ac+dc |
| Basic dc accuracy | 0.025 % | 0.025 % |
| Wide bandwidth | 100 kHz | 100 kHz |
| Auto / manual ranging | • / • | • / • |
| Digits | 4-1/2 | 4-1/2 |
| Measurements | ||
| Voltage ac/dc | 1000 V | 1000 V |
| Current ac/dc | 10 A | 10 A |
| Resistance | 500 MΩ | 500 MΩ |
| Frequency | 1 MHz | 1 MHz |
| Capacitance | 100,000 µF | 100,000 µF |
| Temperature | (+) 1350 °C | (+) 1350 °C |
| Conductance / dB | 50 nS / 60 dB | 50 nS / 60 dB |
| Duty cycle / pulse width | • / • | • / • |
| Continuity / diode test | • | • |
| Motor Drive (ASD) | • | • |
| LoZ: low input impedance | • | • |
| Lo ohms | • | |
| Microamps | • | • |
| Downloads | ||
| Datasheet | Download | Download |
| See full specs | ||

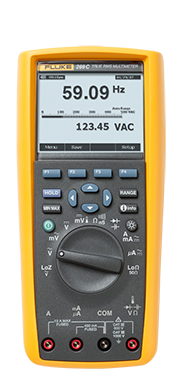

Fluke 289 True-RMS Industrial Logging Multimeter with TrendCapture
The 289 is the next generation high performance industrial logging multimeter designed to solve complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment.
- Compatible with Fluke Connect mobile app and all Fluke FC enabled test tools with optional ir3000 FC infrared connector (sold separately).
- Let your team see what you see in an instant with ShareLive™ video call (requires Fluke Connect mobile app and ir3000 FC wireless connector).
- TrendCapture graphically displays logged data session to quickly determine whether anomalies may have occurred.
- Zoom on trend provides unprecedented ability to view and analyze TrendCapture data; zoom in up to 14 times.
- Selectable ac filter (smoothing mode) helps display a steadier reading when the input signal is changing rapidly or noisy.
- Adjustable recording and auto hold thresholds, specify a percentage change in the readings that begins a new event.
- Large 50,000 count, 1/4 VGA dot matrix display with white backlight
