It looks like one of our bench multimeters will be right for you!
| Technical Specifications | ||
| Display | VFD multi segment display, dual readings | VFD Dot Matrix |
| Resolution | 5.5 digits | 6.5 digits |
| V dc |
Ranges: 200 mV to 1000 V Max. resolution: 1 uV Accuracy: 0.015 + 0.003 |
Ranges: 100 mV to 1000 V Max. Resolution: 100 nV Accuracy: 8845A: 0.0035 + 0.0005 (% measurement + % of range) 8846A: 0.0024 + 0.0005 (% measurement + % of range) |
| V ac |
Ranges: 200 mV to 750 V Max resolution: 1 uV Accuracy: 0.2 + 0.05 Frequency: 20 Hz to 100 KHz |
Ranges: 8845A: 100 mV to 750 V 8846A: 100 mV to 1000 V Max. Resolution: 100 nV Accuracy: 8845A: 0.06 + 0.03 (% measurement + % of range) 8846A: 0.06 + 0.03 (% measurement + % of range) Frequency: 3 Hz to 300 KHz |
| Resistance |
2x4 Wire: Yes Ranges: 200 Ω to 100 MΩ Max resolution: 1 mΩ Accuracy: 0.02 + 0.003 |
2x4 Wire: Yes Ranges: 8845A: 100 Ω to 100 MΩ 8846A: 10 Ω to 1 GΩ Max. Resolution: 8845A: 100 µΩ 8846A: 10 µΩ Accuracy: 8845A: 0.010 + 0.001 (% measurement + % of range) 8846A: 0.010 + 0.001 (% measurement + % of range) |
| A dc |
Ranges: 200 µA to 10 A Max resolution: 1 nA Accuracy: 0.02 + 0.005 |
Ranges: 100 µA to 10 A Max. Resolution: 100 pA Accuracy: 0.050 + 0.005 (% measurement + % of range) |
| A ac |
Ranges: 20 mA to 10 A Max resolution: 100 uA Accuracy: 0.3 + 0.06 Frequency: 20 Hz to 2 kHz |
Ranges: 8845A: 10 mA to 10 A 8846A: 100 mA to 10 A Max. Resolution: 8845A: 10 nA, 8846A: 100 pA Accuracy: 0.10 + 0.04 (% measurement + % of range) Frequency: 3 Hz to 10 kHz |
| Frequency |
Ranges: 20 Hz to 1 MHz Max resolution: 0.1 mHz Accuracy: 0.01 % |
Ranges: 8845A: 3 Hz to 300 kHz 8846A: 3 Hz to 1 MHz Max. Resolution: 1 µHz Accuracy: 0.01 % |
| Math Functions | dB/dBm: Yes |
NULL, Min/Max/Average, Std Dev dB/dBm: Yes |
| Advanced functions | Limit compare test, with pass and fail indicators |
Statistics/Histogram: Yes Trendplot: Yes Limit Test: Yes |
| See full specs | ||

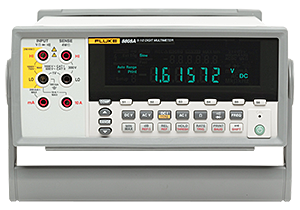

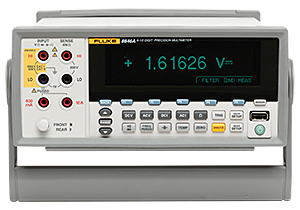

Precision and versatility for bench or systems applications with Fluke Bench Multimeters
Fluke Bench Multimeters have the precision and versatility to handle your most demanding measurements, on the bench or in a system. These meters are both high performance and feature rich, yet also remarkably easy to use.
- Dual display and versatile graphical capabilities
- Perform 4-wire measurement with only two leads
- Multiple connectors give you maximum flexibility
- FlukeView® Software and drivers add PC power and application compatibility
